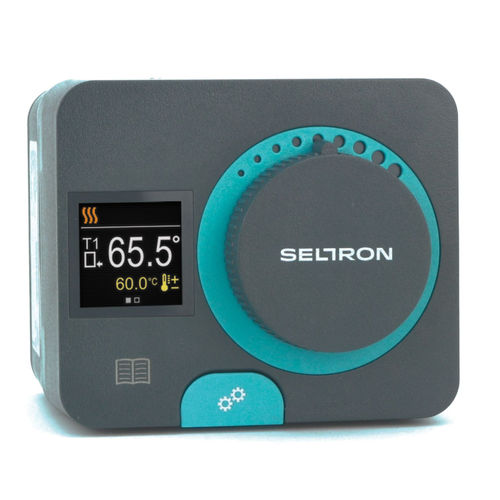

ACD compact controllers are built into the actuator housing. The temperature sensors and connection cables are pre-wired in the controller, therefore the installation is quick and flawless. They are distinguished by compact design and ease of use. The controllers feature a colour graphic display.
Boiler return temperature or any other energy source temperature control
Heating or cooling system supply temperature control.
3 preset hydraulic schemes.
Directly integrated sensor.
Two sensor option.
Adjustable temperature control.
Simple user interface.
Direct installation onto 20 different mixing valves.
The possibility to configure the mixing valve opening direction.
Innovative connector system for connecting sensors.
TFT display - yes
Keyboard - yes
Own consumption - Max. 3.5 W
Energy consumption in the standby mode - Max. 0.25 W
Torque - 6 Nm
Running angle - 90 < °
Running speed - 2 min 90 < °
Mixing valve control - 3-point PID
Circulation pump control - 2-point (ON/OFF)
Control output - Solid state relay, 1 (1) A~, 250 V~
Connection voltage - 230 V~, 50 Hz
Maximum own consumption - 5 W
Clock power supply - CR1025 battery (Li-Mn) 3 V
Clock accuracy - +/-1 s (24 h) at 20 °C
Degree of protection - IP42 according to 60529
Safety class - I according to EN 60730-1
Type of temperature sensors - Pt1000
Housing material - PC – dark grey
Operating temperature - 0÷50 °C
Storage temperature - -20÷65 °C
Product weight - 595 g
No. of pieces in the packaging unit - 12 pcs
