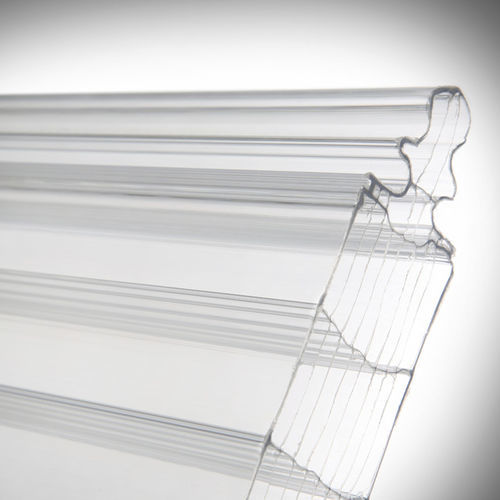

Cellular polycarbonate panel SEPLUX 40 9P

flatfor curtain wallcolored

Modular multiwall panel with a tongue-and groovejoint in co-extru-ded polycarbonate (UV-protected on one side) - GUARANTEED 10 YEARS against ageing. The patented male-female interlock joint ensures per- fect water-tightness without needing any sealant. The combined use of Seplux 40 panel together with their special stainless steel hooks ensures suitability to both traditional and bespoke designs in various sizes and architectural styles, without the need to modify or alter the panels avoiding any drilling, cutting or seal- ing that would compromise their technical character- istics. The 9-wall Seplux 40 9P panel is very resistant and versatile and therefore ideal for any project. TECHNICAL DATA • - Panel Section : 40 mm triple-wall • - Width: 435 mm • - Length: maximum transportable • - Light Transmission: 47,5 % • - Thermal Insulation: U = 1,0 W/(m2k) • - Minimum Bending Radius: 200 times its thickness (r = 8000 mm) • - Linear Expansion: 0,065 mm/m °C • - Service Temperature: - 40° + 120° °C • - Fire Resistance: European standard B- s1,d0 • - Load Resistance: kg. 120 (concentrate load) • - Available colours: transparent - opal - smoke - blue - green (other colours on request)
