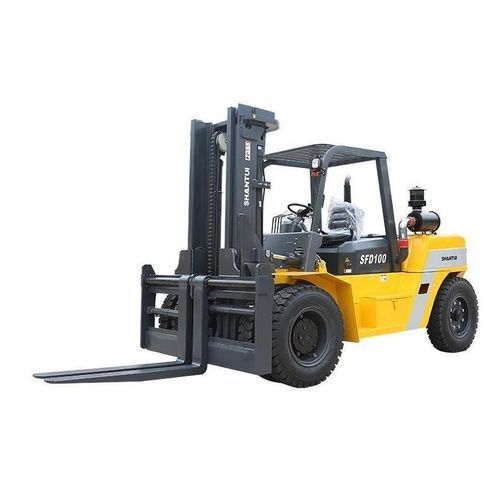

Logistic forklift SFD100

for industrial usefor warehousediesel engine

Key features

• Core components (transmission and drive axle) are manufactured in-house and precisely matched with a dedicated engine to deliver low fuel consumption and high traction.
• Maintenance and operator comfort: removable suspension frame for easy access, integrated intelligent diagnostic system, wide-view cab frame and adjustable safety seat for ergonomic operation.
• Adaptability to varied working conditions: optional cab frames and forks in different configurations to meet diverse logistics requirements and heavy-load applications.

Parameters
Model: SFD100
Load weight (kg): 10000
Maximum lifting height (mm): 4545
Wheelbase (mm): 2800
External dimensions (L×W×H) (mm): 5780×2175×2760
Load center distance (mm): 600
Front overhang (mm): 700
Forward/Backward tilting angle of mast (°): 6°/12°
Emissions (according to international standards): EU stage IIIA

Technical specifications

• Model: SFD100
• Type: Diesel forklift
• Rated load: 10,000 kg
• Maximum lifting height: 4545 mm
• Wheelbase: 2800 mm
• External dimensions (L×W×H): 5780×2175×2760 mm
• Load center distance: 600 mm
• Front overhang: 700 mm
• Mast tilt (Fwd/Back): 6°/12°
• Emissions: EU stage IIIA
• Key features: in-house transmission and drive axle, dedicated engine matching for low fuel consumption and strong traction, removable suspension frame for simplified maintenance, intelligent diagnostics, wide-view cab frame, adjustable safety seat, optional cab frames and forks for multiple logistics configurations.
