Logistic forklift SFE35

for industrial usefor warehousefor distribution centers

Product overview

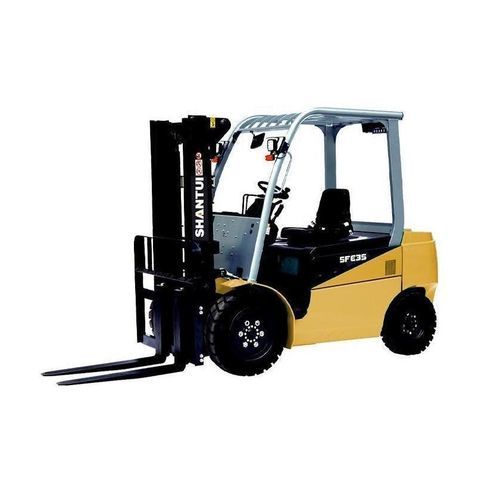

The SFE35 is an electric counterbalanced forklift with a rated load capacity of 3,500 kg and a maximum lifting height of 4045 mm. It is designed for logistics and industrial material handling where long runtime and flexible configuration are required.

Key characteristics

• Configuration: dedicated batteries and customized drive systems delivering low energy consumption, high tractive effort and extended runtime
• Maintenance and operation: maintenance-free AC traction motor with onboard fault codes to simplify diagnostics and reduce downtime
• Battery system: quick-change battery design for fast replacement and improved serviceability
• Adaptability: optional masts and fork configurations to suit diverse logistics conditions and ensure stable travel

Technical parameters

• Model: SFE35
• Load capacity: 3500 kg (3.5 t)
• Maximum lifting height: 4045 mm
• Wheelbase: 1785 mm
• External dimensions (L×W×H): 3738×1268×2137 mm
• Load center distance: 500 mm
• Front overhang: 509 mm
• Mast tilt angle (forward/backward): 6°/12°
• Emissions: /

Applications
Suitable for indoor and outdoor logistics operations, warehouses, distribution centers and industrial parks. Example case: SHANTUI SFD35 forklift operation in an industrial park.

Maintenance & safety

• Fault-code diagnostics simplify routine checks and troubleshooting
• Accessible service points and quick battery replacement reduce maintenance time
• Comply with local safety regulations and ensure operator training for safe use
