Boom crane SP90Y

hydraulicmobilecrawler

Product

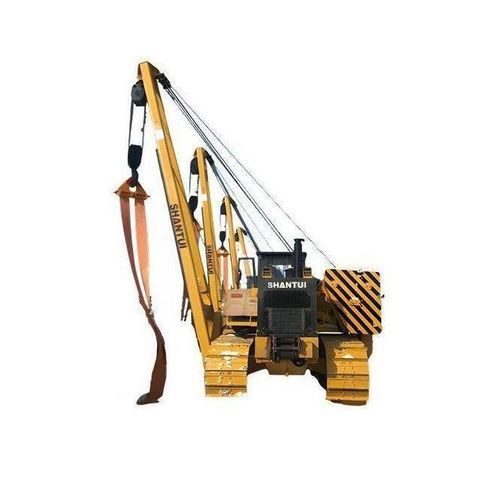

Pipelayer SP90Y for pipeline construction. Features a 90,000 kg maximum lifting capacity, 257 kW rated power, extended boom reach and a reinforced undercarriage for pipeline handling operations.

Characteristics

• Powertrain and control: Dedicated engine configuration provides stable rated power and efficiency. Pilot-operated, load-sensitive hydraulic control ensures steady lifting and precise maneuvering.
• Maintenance and operator access: Fully openable side guard creates a wide maintenance area. External working valves simplify assembly/disassembly. Centralized pressure test points enable efficient service routines.
• Adaptability to working conditions: Extended boom increases operational reach. High-strength four-wheel-and-one-track design, manufactured by Shantui, improves durability and service life.

Parameters
Model — SP90Y
Overall weight (kg) — 60000
Rated power / rated speed (kW / rpm) — 257 / 2000
Maximum lifting weight (kg) — 90000
External dimensions (mm) — 5650 x 3350 x 3600
Engine model — Cummins QSNT-C345 / NTA855-C360
Track center distance (mm) — 2490
Track shoe width (mm) — 860
Ground contact length (mm) — 3620
Fuel tank capacity (L) — 600
Working device — Suspension rod
Emissions — EU stageⅢ / EU stageⅠ

Application Cases

• SP90Y pipelayer used for natural gas pipeline installation in Mexico
• SP90Y pipelayer used for natural gas pipeline installation in Turkey

Technical specifications

• Model: SP90Y
• Overall weight: 60000 kg
• Rated power / rated speed: 257 kW / 2000 rpm
• Maximum lifting weight: 90000 kg
• External dimensions: 5650 x 3350 x 3600 mm
• Engine model: Cummins QSNT-C345 / NTA855-C360
• Track center distance: 2490 mm
• Track shoe width: 860 mm
• Ground contact length: 3620 mm
• Fuel tank capacity: 600 L
• Working device: Suspension rod
• Emissions standard: EU stageⅢ / EU stageⅠ
