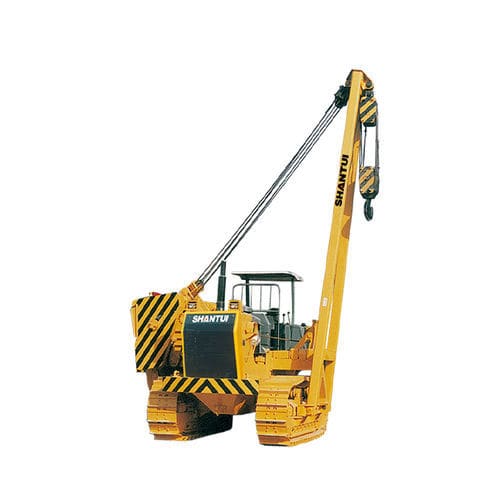

Boom crane SP25Y

hydraulicmobilecrawler

Product
Tracked pipelayer SP25Y designed for pipeline installation across varied terrains. Equipped with a suspension-rod working device and a tracked undercarriage for stability during lifting and stringing operations.

Key characteristics

• Powertrain and control Weichai WD10G engine, tuned for fuel efficiency; load-sensitive hydraulic system with pilot-operated controls for stable lifting and precise movement.
• Maintenance and operator access Fully openable side guards provide wide access to service points; external working valves allow quick assembly and disassembly; centralized pressure test points simplify maintenance routines.
• Operational adaptability Extended boom for a wide working envelope; high-strength four-wheel-and-one-track configuration manufactured by Shantui for increased reliability and longer service life.

Parameters

• Model: SP25Y
• Overall weight (kg): 23800
• Rated power / rated speed (kW / rpm): 131 / 1850
• Maximum lifting weight (kg): 25000
• External dimensions (mm): 4130 x 2610 x 3050
• Engine model: Weichai WD10G
• Track center distance (mm): 2050
• Track shoe width (mm): 560
• Ground contact length (mm): 2635
• Fuel tank capacity (L): 300
• Working device: Suspension rod
• Emissions: EU stageⅡ

Application Cases

• SP25Y pipelayer for natural gas pipeline installation in Mexico
• SP25Y pipelayer for natural gas pipeline installation in Turkey
• SP25Y pipelayer for regional pipeline projects with varied terrain conditions

Technical specifications

• Model: SP25Y
• Overall weight (kg): 23800
• Rated power / rated speed (kW / rpm): 131 / 1850
• Maximum lifting weight (kg): 25000
• External dimensions (mm): 4130 x 2610 x 3050
• Engine model: Weichai WD10G
• Track center distance (mm): 2050
• Track shoe width (mm): 560
• Ground contact length (mm): 2635
• Fuel tank capacity (L): 300
• Working device: Suspension rod
• Emissions: EU stageⅡ
