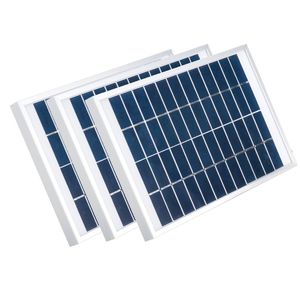

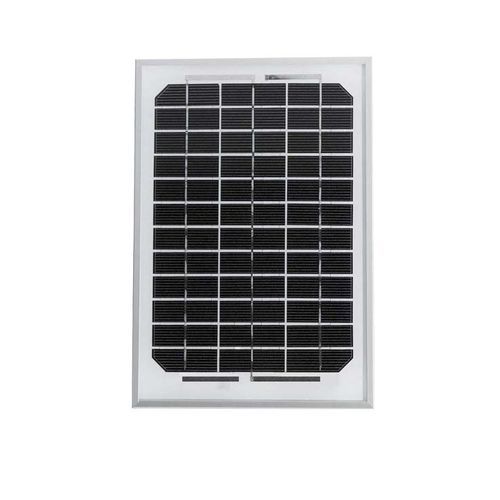

Monocrystalline PV solar panel eRigid P20w

flexible

Features - popular size,small size,high efficiency solar cell A grade poly solar panel Product Name - 12v poly panel solar 20w Battery Charger Backup for industrial use street light guard station Maximum Power[Wp] - 20 Solar Cell - Poly A grade solar cell Cell size[mm] - to be confirmed with solar sales representative Cell Array[Pcs] - 3*12 Cell Efficiency - 18.44% Size[mm] - 430*340*25 Max Power Voltage Vmp[V] - 19.08 Max Power Current Imp[A] - 1.05 Open Circuit Voltage Voc[V] - 22.51 Short Circuit Current Isc[A] - 1.14 Net.Weight[kg] - 1.2 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.41 Temperature Coefficient Voc[[%/ - -0.32 Temperature Coefficient Isc[[%/ - 0.04 Maximum System Voltage[V] - 1000 V Certification - CE ROHS
