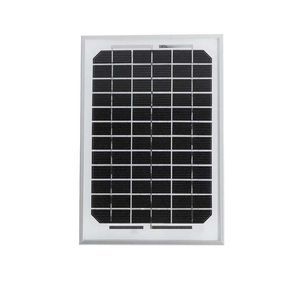

Monocrystalline PV solar panel eRigid P5w

semi-rigid

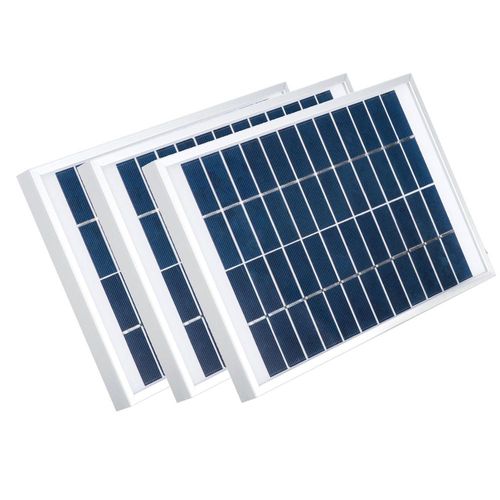

Product Name - Rigid Polycrystalline solar panel Maximum Power[Wp] - 5 Solar Cell - Poly A grade solar cell Cell size[mm] - 78*14.6 Cell Array[Pcs] - 2*12 Cell Efficiency - 18.24% Size[mm] - 100*280*18 Max Power Voltage Vmp[V] - 13.44 Max Power Current Imp[A] - 0.38 Open Circuit Voltage Voc[V] - 15.86 Short Circuit Current Isc[A] - 0.4 Net.Weight[kg] - 0.4 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.41 Temperature Coefficient Voc[[%/ - -0.32 Temperature Coefficient Isc[[%/ - 0.04 Maximum System Voltage[V] - 1000 V Certification - CE ROHS
