Diesel engine drilling rig SM-6
rotarydown-the-holeconstruction

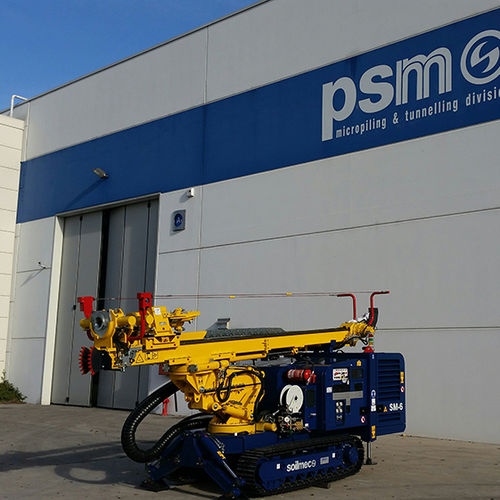

Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction
Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction
Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction - image - 2
Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction - image - 3
Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction - image - 4
Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction - image - 5
Diesel engine drilling rig - SM-6 - SOILMEC S.P.A. - rotary / down-the-hole / construction - image - 6
Add to favorites
Compare this product


Characteristics

Operation
diesel engine
Type
rotary, down-the-hole
Other characteristics
construction, crawler

Description

STANDARD EQUIPMENT • Steel undercarriage: width 1700 mm and shoes 300 mm • Load sensing hydraulic system. Main pump: variable axial type • Kinematic mechanism: Swiveling boom articulation by slew ring on the base machine enables parallel drilling on the tracks up to +/- 90° • Counter slide: slew ring on mast for +/- 180° rotation • Sliding mast by cylinder • Telescopic boom of 400 mm on base carrier • Modular mast and hoist system by motoreduced • Rotary cradle with side shifting • Full radio remote control Technical data Boom articulationtypecombinated Diesel enginekW100 Weightt7 Max TorquedaNm3400 Max hoistkN52 Clamping rangemm50-220 Track shoe widthmm300
