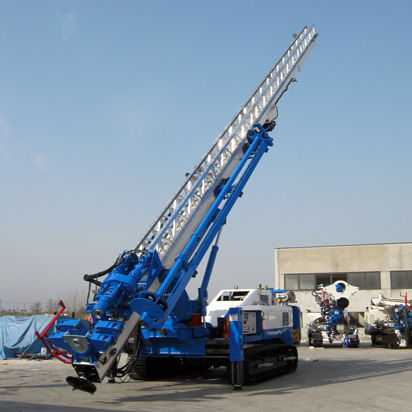

Diesel engine drilling rig SM-28

rotarytophammerconstruction

The SM-28 is a multipurpose rig that suits a wide range of civil engineering work requirements. High standard components and advanced hydraulic circuit design have enabled increased rig performance, preserving its reliability, even under extreme conditions. Its smart and compact de-sign allows fast rig assem-bly and ease of transport (even in a container). Minimum operating costs. Soilmec SM-28 versatility unit that can be tailored to any customer need or geological conditions: - Top hammer kit - Jet Grouting kit - CFA kit - Double rotary - Rod carousel - Clamp & guide for CFA - 13500 mm feed stroke - Mast tilting until 18° Soilmec SM-28 standard version is already equipped with some important items: - Drill mast 16000 mm stroke - Clamp and breaker 40-320 mm - Service winch Technical data Boom articulationtypemast side tilting Diesel enginekW194 Weightt33-38.8 Max TorquedaNm3300 Standard cradle strokemm16000 Max hoistkN170 Max feed forcekN87 Clamping rangemm60-430 Track shoe widthmm600
