Fire-retardant sandwich panel STACBOND® FRfor roof2 aluminum facesmineral wool core
Add to favorites
Compare this product
Characteristics
- Applications
- for roof
- Facing material
- 2 aluminum faces
- Core material
- mineral wool core, thermoplastic core
- Technical characteristics
- high-resistance, fire-retardant
- Fire class
- Euroclass B-s1-d0
- Other characteristics
- 100% recyclable
- Width
Min.: 800 mm
(31 in)Max.: 2,000 mm
(79 in)- Length
Min.: 2,000 mm
(79 in)Max.: 6,000 mm
(236 in)- Thickness
Min.: 5.7 mm
(0.22 in)Max.: 11.2 mm
(0.44 in)
Description

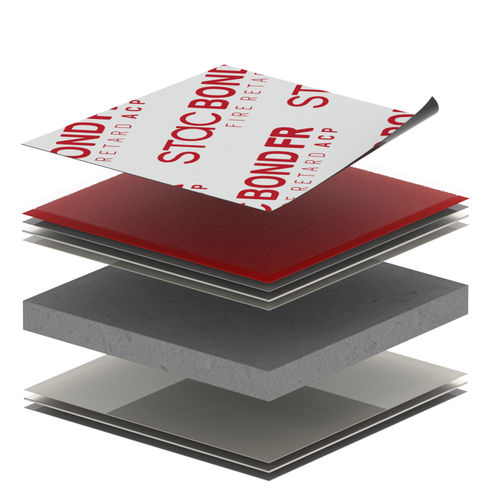

STACBOND® FR panels are composed of two aluminium sheets and an inner fire retardant core of thermoplastic resins with mineral charge.
The panels have excellent mechanical properties such as: great rigidity, excellent flatness and impact resistance.
They comply with the majority of requirements for fire-resistance classification:
✔ UNE EN 13501-1:2007 – B-s1, d0
✔ PN-90/8-02867 – NRO
✔ NFPA 285 – PASS
✔ ASTM E84 – A CLASS
