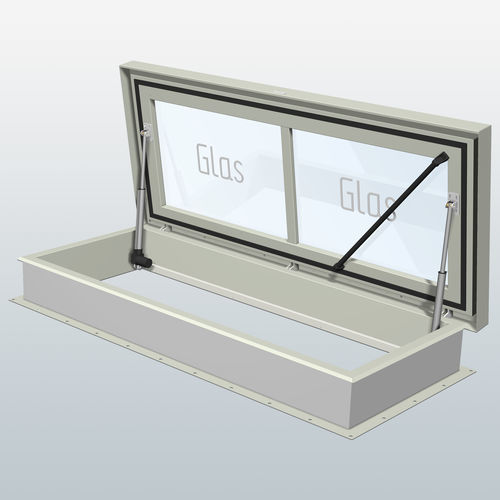

Roof hatch DL249MZGLAS

for patiorectangularstainless steel

DL-Series Glass Roof Hatch – Safe and stylish roof access with natural daylight Key benefits • Safe and stylish roof access: combines safety and aesthetics with HR++ fall-proof glass and natural light transmission • Standard electric operation: integrated as standard for maximum comfort • Ideal for roof terraces: provides safe and convenient access Technical specifications • Clear opening (L × W): 2400 × 900 mm • Weight: ± 250 kg • Upstand height (H): 280 mm • Required roof opening: matches the clear opening dimensions Construction • Material: stainless steel (AISI 304, polished) • Insulation: rigid foam, ± 53 mm against the outer wall of the upstand • Surface treatment: powder-coated • Standard colour: RAL 9005 Operation • Standard electric operation • Handle: 1 Performance • Airtightness and watertightness: ensured by a neoprene seal between upstand and lid • Load capacity: up to ± 200 kg/m² • Glazing: HR++ double glazing, fall-proof – Exterior: solar control toughened glass – Interior: fire-resistant laminated HR++ glass – Thermal insulation: U = 1.1 W/m²K – Light transmission (T-Value): 72% – Solar factor (G-Value): 32% Installation • To be installed at a slope between 5° and 10° • Mounted using a flange connection Options • Alternative colours: additional interior and exterior colours available on request
