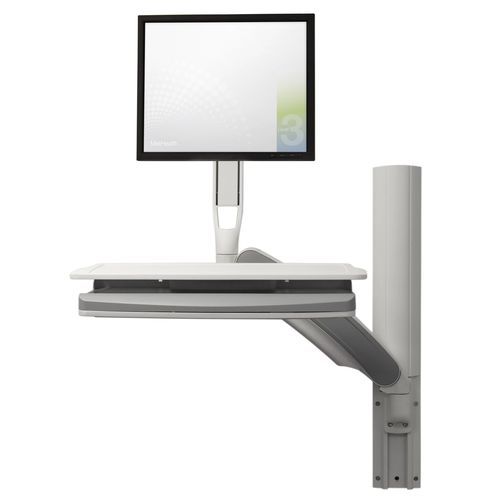

Wall-mounted monitor support RELAY™

Overview
Relay wall-mounted arm is designed to support information technology and clinician workflows at the point-of-care. It positions displays and computing devices close to clinicians to improve access to patient information, documentation and team communication.

Close at Hand
Relay keeps technology within easy reach to support bedside workflows, teaching and patient interactions. The arm adjusts intuitively to accommodate different users and clinical tasks, enabling efficient access to screens and peripherals.

Smart Space Planning
As a wall-mounted solution, Relay minimizes footprint in tight clinical spaces. It stores close to the wall when not in use and integrates discreet cable management. Relay is commonly used alongside mobile carts and clinician workstations within comprehensive point-of-care technology setups.

Insights
By making technology readily accessible, Relay helps clinicians focus on the patient and facilitates information sharing with patients, families and care teams. Its design supports continuous use in 24/7 healthcare settings.

Sustainability
Relay is engineered for sustainability and end-of-life recovery: up to 99% recyclable and made with up to 55% recycled content. A Product Environmental Profile is available that details life-cycle considerations and material composition.

Standard + Optional Features

• Components: Wall mount column, Standard CPU, Enclosed CPU, Extension Arm
• Additional features: 22 in vertical adjustment; weight capacity 5 to 20 lb (2.3–9.1 kg); 42 in reach into space (107 cm); stores less than 10 in (25 cm) from wall when not in use; intelligently designed cable management
• Surface materials / Paint: Gray painted metal

Certifications & Warranty

• Certifications: BIFMA Level 3; SCS Indoor Advantage™ Gold
• Warranty: Limited Lifetime

Technical specifications

• Model name: Relay™
• Width (example dimension shown on product page): 34 in (86 cm)
• Steelcase style number: HTW34
• Vertical adjustment: 22 in (56 cm)
• Weight capacity: 5 to 20 lb (2.3–9.1 kg)
• Reach: up to 42 in (107 cm)
• Storage depth when not in use: less than 10 in (25 cm) from wall
• Materials: painted metal (Gray)
• Recyclability: up to 99% recyclable
• Recycled content: up to 55% recycled content
• Certifications: BIFMA Level 3; SCS Indoor Advantage™ Gold
• Warranty: Limited Lifetime
