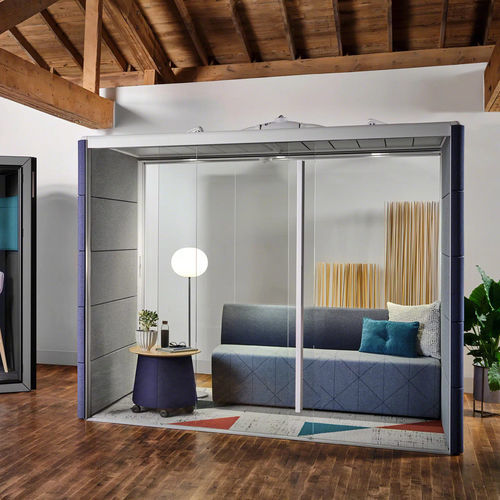

Office pod with built-in lighting AIR3

acousticwith integrated electrical outletwith motion sensor

Overview
Air3 acoustic pod is a freestanding meeting and privacy pod designed for collaborative and focus work. It integrates acoustic control, lighting and IT connections to support small meetings, phone calls and touchdown work.

All in one freestanding package
The Air3 pod uses a modular construction with a proprietary roof‑opening system. It is delivered as a complete freestanding unit that combines glazed surfaces and upholstered panels to balance privacy and visibility.

Technology & Key Systems

• FORM & FUNCTION – Sound‑blocking aluminum blades optimize acoustic isolation and open in approximately eight seconds.
• ROOF‑OPENING SYSTEM – Rotating aluminum louvers automatically open and close when occupants enter or exit.
• IT INTEGRATION AND ADA COMPLIANCE – Integrated power and data ports enable full IT connectivity; standard sizes meet ADA turning‑radius requirements.
• FAIL‑SAFE FIRE SAFETY – Louvered roof and built‑in heat sensors reduce the need for sprinkler integration in many jurisdictions.

Product Features

• Acoustic performance – Combination of reflective and absorbent surfaces including acoustic tempered glass and engineered seals to control internal and external sound transmission.
• Lighting – Presence sensor with automatic on/off; three manual lighting modes (work, think, present).
• Technology – Power and data access points; optional accessories such as monitor brackets.
• Glass magnetic whiteboards – Optional glass magnetic whiteboards integrated into upholstery panels for collaboration.

Accessibility
Low‑profile door threshold, 60‑inch turning radius and ergonomically placed control panel ensure accessibility for users with reduced mobility.

Standard Product Description

• Glass: Clear glass.
• Hoop Power: Service Hoop 3 x Power with integrated lighting and control panel.
• Upholstery: Upholstered internal and external panels.
• Fan: Air circulation fan.

Optional Upcharges

• Monitor Bracket: Hoop‑mounted fixed monitor bracket; over‑upholstery fixed monitor bracket.
• Whiteboards: Straight glass magnetic whiteboard.
• Fixtures: Seismic kit.
• Door Options: Door lock or Ontario‑compliant door.

Integrated Tables

• Tabletop finishes available in Groups 1, 2, 3: Group 1 – High‑Pressure Laminate (HPL); Group 2 – HPL; Group 3 – HPL, Open Line Laminate (OLL) options.

Table Legs

• Standard finish: silver or black; chrome/polished as paid upgrade.

Specifications

• Variants & Dimensions:
  Air‑23 (Style OB1AIR23) – Height: 100"; Width: 110"; Depth: 66"; Product Weight: 1017 lbs; List price (reference): 51,288 USD.
• Air‑25 (Style OB1AIR25) – Height: 100"; Width: 110"; Depth: 117"; Product Weight: 1312 lbs; List price (reference): 63,244 USD.
• Air‑27 (Style OB1AIR27) – Height: 100"; Width: 110"; Depth: 173"; Product Weight: 1738 lbs; List price (reference): 97,123 USD.
• Air‑29 (Style OB1AIR29) – Height: 100"; Width: 161"; Depth: 172"; Product Weight: 2085 lbs; List price (reference): 60,072 USD.
• Certifications: EN compliant; UL certified.
• Warranty: 10 years.
• Standard materials & systems: Clear glass, upholstered internal and external panels, service hoop with integrated lighting/control, air circulation fan.
