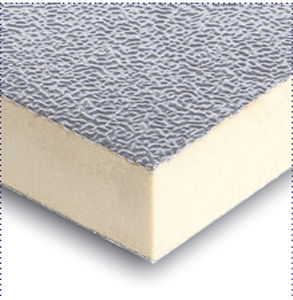

Ventilated facade insulating sandwich panel AI6

for floorfor wall2 aluminum faces

STIFERITE AI 4 a high performance insulation board manufactured from CFC or HCFC free closed cell Polyiso (PIR) rigid foam, covered on both sides by a 40um thick embossed aluminium facer. The AI 4 panel is suggested for walls and ventilated facades, and floors. Ideal for applications requiring a vapore barrier. Dimensions: mm 600 x 1200 Standard Thickness: from 20 to 60 mm, on request also available up to 120 mm Available in AI 6 version, with embossed aluminium facer of 60 µm thick, and AI 8 with embossed aluminium facer of 80 µm. Produced by a company certified with systems: ISO 9001, OHSAS 18001 and ISO 14001. CE conformity marking on the entire line.. Also available in the STIFERITE AV serie, panels with embossed aluminium on one side and saturated fibre glass on the other. Suggested in applications requiring different permeability of vapor characteristics on the sides of the panel, and the option of being able to glue the panel. Refer to the technical data sheets for the characteristics and performance of the AV series panels.
