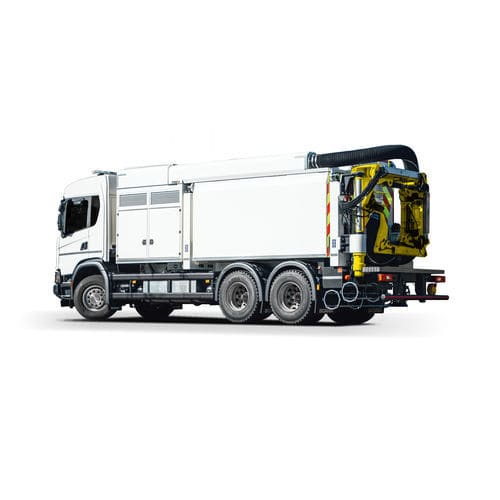

Suction excavator SLF6

Suction System • Split-drive engine PTO • Twin-900dia fans which are operated in tandem • Operational fan speed variable between 2400 RPM – 4000 RPM to suit operation • Belt Drive or HydraDrive available Rear Hydraulic Articulated Power-Arm • Patent pending hose rotation system • 250mm hose diameter • 6m range, 180° pivot Electrical System • CAN-bus iSS (Intelligent Suction System) • STODD (Stock Total Onboard Diagnostic Display) • 24 volt • Hour Meter • All external loom connections are full automotive IP67 rated Hopper, Lid & Fan Enclosure • Hopper & lid fabricated from heavy-duty stainlesssteel plate • Fan enclosures are fabricated from mild steel plate • Fan enclosures are lined with frequency matched soundproofing material • Painted in One Solid Colour • Dual (2x) Stabiliser Legs Compressed Air • Screw compressor • Jet Spade XT™ trenching tool • 9m3/min, 7bar • Oiled, 7m retractable rear-mounted pneumatic hose reel (for use with air tools which require lubrication) • Clean, 7m retractable rear mounted pneumatic hose reel (for use with the Jet Spade XT trenching tool) Optional Equipment • Camera monitoring systems • 6M Radar Reversing Safety Sensors • Lights – Safety Perimeter Danger Zone Lighting • Supa-wash - high pressure washing system (32 l/min @ 100 bar), c/w hand lance, hose reel & 15m hose • Gas detection system • Rotata rotary head
