Aluminum planter SHRUBTUBS OBLONG

COR-TEN® steelgalvanised steelpowder-coated steel

Product overview

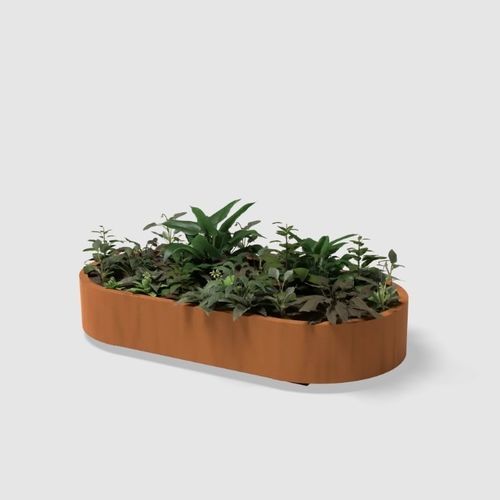

The Shrubtubs Oblong are elongated tree planters ideal for sidewalks and shopping streets. Their shape maximises planting area while fitting narrow urban corridors.

Materials & finish
Manufactured in Corten steel, which develops a protective weathered patina making it suitable for public spaces. An alternative double-layer powder coating finish is available in RAL colours.

Features

• Constructed in Corten steel (weathering steel) or available in powder-coated finish
• Corten develops a durable protective patina over time
• Alternative double-layer powder coating in RAL colours
• Designed for relocation (mobile tubs)
• Anchoring for the root ball included
• Single-walled sides reinforced with an upper frame to prevent sagging from soil pressure
• Compatible with the Treetec™ Bottom Up system for insulation, oxygen circulation, root ball fixing, irrigation and excess water drainage

Treetec™ Tree care system
Years of research in urban projects have produced the Treetec™ system applied in Streetlife’s tree tubs. The Treetec™ tree care system supports optimal tree development within planters.

Treetec™ Bottom Up - description and stages
With Treetec™ Bottom Up, a water reservoir at the bottom of the tub uses capillary tubes to improve water circulation and reduce watering frequency during the growing season. The biodegradable Bottom Up column gradually decomposes into the substrate.

• A Installation of the columns against the root cloth
• B Initial root growth into the column structure and first reduction of moisture-retaining fibres
• C Continued root growth in the columns and partial degradation of the cylindrical column
• D Fully integrated column structure replacing the original capillary column, providing optimal water and oxygen retention by the roots

Material details (tables)
Corten Steel
Material: Weathering steel
Colour: Warm red-brown
Texture: Rough
Years to oxidate: 1-3 years
Lifespan: approx. 50 years
Maintenance: None
Recyclable: Yes

Powder Coating
Finish: Powder coating
Material (possible substrates): Steel, aluminium, Corten Steel, galvanised steel
Colour: RAL
Texture: Smooth
Lifespan: approx. 10 years
Maintenance: None
Recyclable: Yes

Technical specifications

• Model name: Shrubtubs Oblong
• Category: Tree planters
• Main materials: Corten Steel (weathering steel) or powder coating on steel/aluminium/Corten/galvanised steel
• Corten properties: warm red-brown patina, rough texture, oxidates in 1-3 years, lifespan approx. 50 years, recyclable
• Powder coating properties: RAL colour options, smooth texture, lifespan approx. 10 years, recyclable
• Dimensions (available variations shown on product): Height (cm): 90 or 45; Length (cm): 240; Width (cm): 120
• Root ball anchoring: yes
• Side reinforcement: single-walled sides with upper frame to prevent sagging
• Mobility: mobile tubs, easily relocated
• Recommended accessory/system: Treetec™ Bottom Up (insulation, oxygen circulation, root ball fixing, irrigation, drainage)
