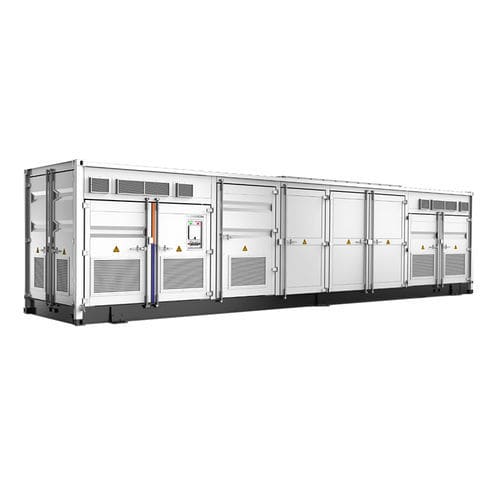

PV inverter SC5000HV-MV

centralthree-phasetransformerless

Advanced three-level technology,max. inverter efficiency 98.8% Effective forced air cooling,1.1 overload capacity,no derating up to 50°C Wide DC voltage operation window, full power operation at 1500V Supports two independent DC inputs for each 2.5MW unit Integrated current and voltage monitoring function for online analysis and fast trouble shooting Low transportation and installation cost due to 40-foot container design Modular design and all components front accessible,easy for maintenance Integrated auxiliary power supply panels for external devices Typical applations: peak shaving,energy shifting,frequency regulation,capacity firming Compatible with high voltage battery system,low system cost Bidirectional power conversion system with full four-quadrant operation Battery charge & dis-charge management and black start function integrated Compliant with CE, IEC 62477, IEC 61000 Dynamic grid voltage and frequency support L/HVRT, L/HFRT, soft start/stop, specified power factor control and reactive power support
