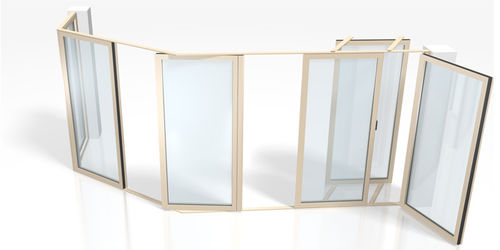

Sliding and stacking patio door MONOSLIDE 80

aluminumdouble-glazedthermal break

MONOSLIDE combines functionality and flexibility in a unique way: unlimited opening, even around cams and corners, on a single flush to the floor rail for optimum living space comfort. This thermally broken, highly insulated system allows to slide a technically unlimited number of wings aside and to stash them in a stacking area.This can be combined with a revolving door for everyday entrance. The possibilty to slide the wings around corners from 90° up to 270° allows for versatile design options. The sealing on top and bottom is provided by specifically designed extender gaskets, which are activated through the locking of the elements. System Keyfeatures Flexibility by versatile possible applications Thermally broken, highly insulated aluminium system Element angles: between 90° and 270° Element width: up to 1500mm Element height: up to 2800mm Glass thickness: up to 62mm
