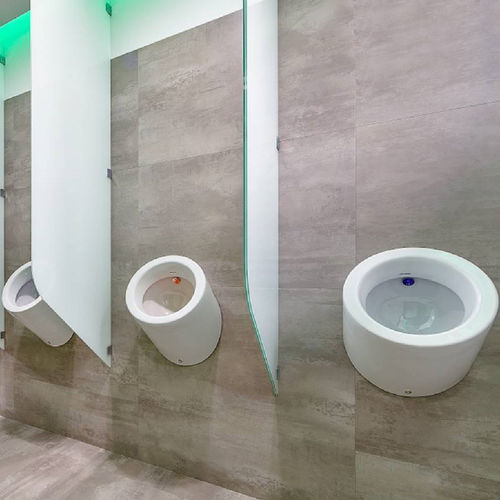

Wall-mounted urinal WCA

ceramicwith photocellfor public spaces

Ceramic urinal with concealed sensors WCA economical flush... Wall mounted ceramic urinal design WCA with automatic flush integrated and concealed - 1L economical flush - easy to assemble with the template included - rinse sensor hidden behind the ceramics - activated only when the urinal is used (takes into consideration the urine or water movement) - adjustable flush duration from 0,5 to 15,5 sec. - minimum use time adjustable before flushing from 6 to 15 sec. - adjustable settings by SLD04 remote control (no need to disassemble the urinal) - automatic flush after 6 hours without being used - possibility to adjust the flow by a stop valve - water s-trap refill after each flush - electronics warrantee 5 years, 2 years for every thing else Remote control SLD04 Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07) Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06) Transformer box to supply up to 5 urinals SPZ02 (ref. SPZ02) Transformer box to supply up to 9 urinals SPZ01 (ref. SPZ01) On request rail DIN transformer
