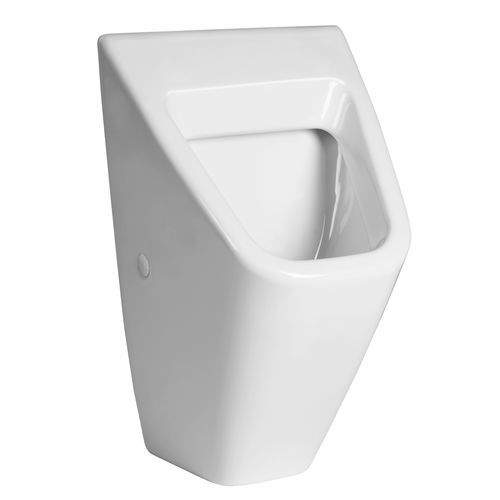

Wall-mounted urinal VILA

ceramicwith photocellhome

Urinal with automatic flush VILA for intensive collective sanitary use... VILA CERAMIC URINAL BY AUTOMATIC CONCEALED FLUSH Designed for public sanitary spaces with high attendance. With its design shape, this 1-liter s-trap system urinal allows you to save on water and to eliminate unpleasant smells. - 1L economical flush - easy assembly with the template included - wall-mounted box with solenoid valve and shut-off valve. - activation only when the urinal is used (takes into consideration the urine or water movement) - adjustable flush duration from 0,5 to 15,5 sec. - minimum use time adjustable before flushing from 6 to 15 sec. - Adjustable settings by SLD04 remote control (no need to disassemble the urinal) - Automatic flush after 6 hours without use - possibility to adjust the flow by a stop valve - water s-trap refill after each flush OPTIONS: Remote control SLD04 Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07) Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06) Transformer box to supply up to 5 urinals SPZ02 (ref. SPZ02) Transformer box to supply up to 9 urinals SPZ01 (ref. SPZ01) On request rail DIN transformer Fold up lid
