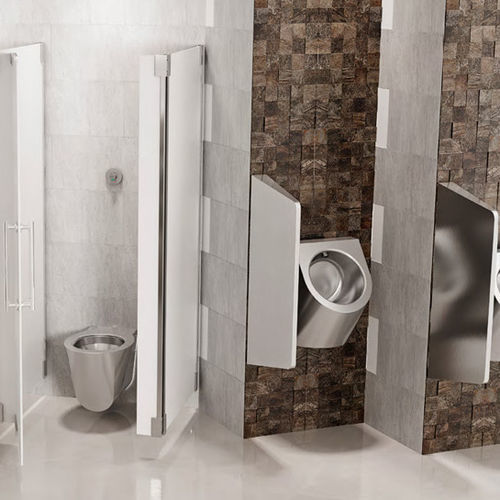

Wall mounted automatic urinal with concealed detection URBA-TH
with automatic function heavy duty and economical
INDIVIDUAL URINAL URBA WITH AUTOMATIC CONCEALED FLUSH
Wall mounted urinal with thermic concealed electronic trigger = no risks of vandalism.
The system automatically activates the flush once it detects a change of temperature (urine heat)
Wall-mounted fixation by service hatch with 2 Torx security screws M5x16mm.
Remote control SLD04
Transformer box to supply up to 5 faucets SPZ02 (ref. SPZ02)
Transformer box to supply up to 9 faucets SPZ01 (ref. SPZ01)
On request rail DIN transformer
Urinal support frame
Bright polished finish
Sensor
Thermal sensor
Electrical supply
External transformer 230/24 V or battery 6 V (4x1,5 AA)
Consumption
7 W on 24 V ; 3 W on 6 V
Compositions
Stainless steel quality AISI 304 brushed finish
Stainless steel thickness
1,5 mm
Finish
Brushed
Stopcock
Bracket with filter
Water inlet
M1/2'' hose
Evacuation
Ø 40 mm (skimmer included)
Pressure
1-6 bars
Flow rate
12 LPM.
Fixation
Frontal by screws and wall plugs
Hygienic rinse anti-limescale
After 24 H without being used (adjustable)
Operation settings
Adjustable by remote control SLD04 : Detection sensitivity, flow time, interval rinse, temporary
off...
Dimensions
W360 x D325 x H550 mm
Warranty
Electronic 5 years
