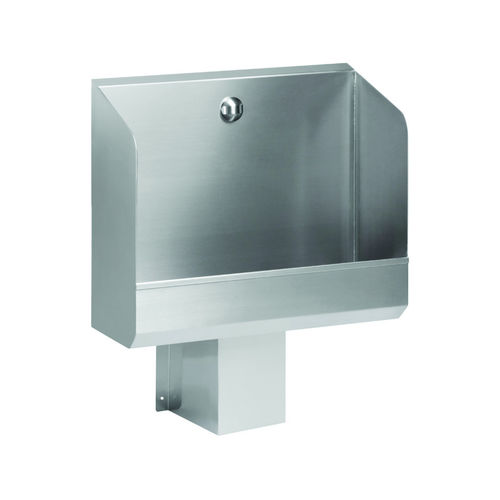

Stainless steel urinal SPN-1T series

wall-mountedwith photocellcommercial

Wall mounted urinal automatic flush in stainless steel ideal for collective facilities, concealed detection and inaccessible to the public ! Wall mounted urinal with concealed thermic electronic flush The system automatically activates the rinse when it detects a temperature change (heat of urine) - Backsplash specially made to integrate plumbing and faucets = reduces installation fees - Complete rinse of the urinal strictly in case of direct use (system analyses the change in the urinal when liquid flows on the inside). - Automatic rinse after 24 H without using (interval adjustable 6/24/48/72 H or without) - Delivered with: thermal detector, rinse nozzle, solenoid valve, stopcock with filter, connexions, s-trap, concealed stainless steel s-trap, fixations Sensor Thermal sensor Electrical supply Transformer 230/24V or battery 6V Consumption 7 W on 24 V ; 3 W on 6 V Compositions Stainless steel quality AISI 304 bacteriostatic Stainless steel thickness 1,2 mm Finish Brushed Stopcock Bracket with filter Water inlet M1/2'' threaded Evacuation Ø 50 mm Pressure 1 - 8 bars Flush time 0.,5 to 15,5 sec. adjustable Flow rate 12 LPM. Hygienic rinse anti-limescale After 24 H without being used (adjustable) Operation settings Adjustable by remote control SLD04 : Detection sensitivity, flow time, interval rinse, temporary off... Dimensions W600 x D220 x H520 mm Warranty Electronic 5 years
