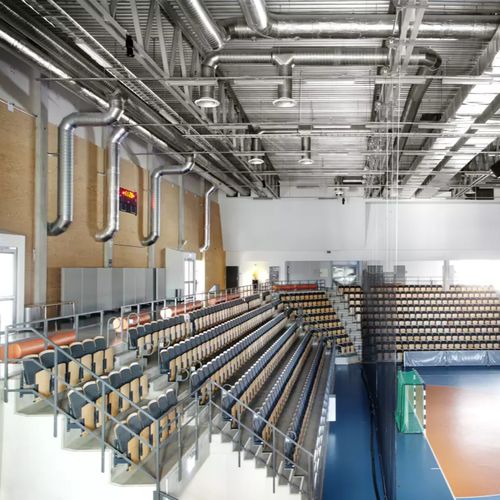

Circular ceiling air diffuser for supply air
Circular supply air diffuser for ceiling installation. Manages large supply air flows Well-suited for constant as well as variable air flow. Air above or below room temperature can be discharged in a horizontal or vertical spread direction into the room. Suitable for comfort and industrial premises.
Manages large supply air flows
Horizontal or vertical distribution pattern
Provision for motorised adjustment of the distribution pattern
Suitable for airborne heating
Can be used with the ALS commissioning box
Cleanable
Standard white RAL 9003
5 alternative standard colours
Other colours upon request
Technical description
Design
The FALCON C consists of two parts: an outer cone with rubber
ring sealed-fitted spigot connection on the sizes up to and
including size 400 as well as an aerodynamically designed outlet
cone. The inner cone is height-adjustable and removable.
The inner cone can be set to a new position by hand or its setting can be changed by a motor. The FALCON C with electric
motor is available in sizes 315, 400 and 500. The motor-actuated model has a longer spigot connection. See the dimension
table and Figure 6.
Materials and finish
The entire air diffuser is made of sheet steel and its interior and
exterior surfaces are painted.
• Standard colour:
- White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N
• Alternative standard colours:
- Silver gloss, lustre 80, RAL 9006
- Grey aluminium gloss, lustre 80, RAL 9007
- White semi-gloss, lustre 40, RAL 9010
- Black semi-gloss, lustre 35, RAL 9005
- Grey semi-gloss, lustre 30, RAL 7037
• Non-painted finish and other colours available on request
