Centrifugal fan RS extractorductindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- extractor, centrifugal
- Installation
- duct
- Sector
- commercial, industrial
- Location
- indoor
- Material
- galvanised steel
- Color
- silver-colored
- Other characteristics
- acoustic, for high temperatures
- Air flow
Max.: 8,755 m³/h
(309,179.9 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Noise level
63 dB
- Weight
55 kg
(121.25 lb)- Height
500 mm
(20 in)- Width
800 mm
(31 in)- Length
Max.: 1,040 mm
(41 in)Min.: 740 mm
(29 in)- Power
1,177 W
Description
Overview
Main features
Certifications & sustainability
Technical specifications
- RS series rectangular duct fan for supply and extract air in industrial and commercial HVAC installations. Designed for high airflow applications with options for acoustic and thermal insulation.
- Available insulated variant (RSI) with 50 mm rockwool acoustic and thermal insulation.
- Offered with AC or high-efficiency EC external-rotor motors suitable for 50 Hz and 60 Hz operation.

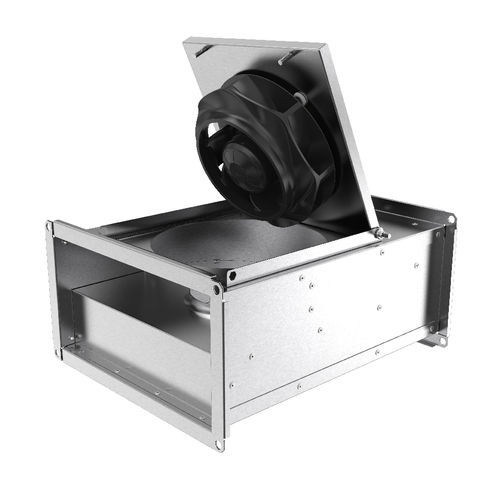

- Service-friendly design with swing-out service lid and installation possible in any mounting position.
Main features
- Casing: galvanised sheet steel, corrosion class C3. Insulated RSI variant includes 50 mm acoustic/thermal insulation. Service cover carries the fan unit for easy removal and cleaning. External terminal box, protection class IP54.
- Impeller: single-inlet radial impeller with backward-curved blades, fiberglass-reinforced composite; dynamically balanced (VDI 2060, G 6.3) and matched to external-rotor motors.
- Motors: AC or EC external-rotor types. EC variants include integrated electronic motor protection, locked-rotor protection and soft-start; many EC variants provide potentiometer (0–10 V) and Modbus/alarm signals. AC motors may have thermal contacts (TK) or require external protection. Control options include multi-step or stepless regulators and frequency converters (accessories).
- Installation: rectangular inlet/outlet flanges (standard PG20). Use flexible connections to avoid vibration transfer to ductwork. Suitable for indoor installation and for elevated operating temperatures up to specified limits.
Certifications & sustainability
- Compliant with ErP / Ecodesign (2018 requirements).
- Environmental Product Declarations (EPD) available for related RS products.
- Marked under Systemair sustainability / Green Ventilation programmes and relevant regional product assessments where applicable.
Technical specifications
- Article name: RS 60-35 EC sileo
- Article number: #77064
- Series / model: RS series
- Motor type: EC (AC variants available)
- Nominal voltage: 230 V
- Frequency: 50 Hz (variants suitable for 60 Hz)
- Phases: 1~
- Nominal input power: 524 W (0.524 kW)
- Nominal input current: 2.29 A
- Impeller speed: 1941 rpm
- Maximum air flow: max. 4,388 m³/h
- Max transported air temperature: 60 °C (also when speed controlled)
- Fan efficiency (ErP data): 58.9 %
- Sound pressure level (at 3 m, 20 m² Sabin): 58 dB(A)
- Protection / motor enclosure class: IP55
- Motor insulation class: F
- Dimensions (duct connection inlet/outlet H x W): 350 x 600 mm
- Typical product weight: 25.8 kg
- Duct connection type: Rectangular (standard PG20 flanges)
- Suitable accessories: flexible connections, filters, heaters/coolers, dampers, mounting frames, electrical accessories (frequency converters, motor protection devices)
- ErP compliance: ErP 2018; unit category: NRVU; unit type: UVU; drive: integrated VSD; heat recovery: none
