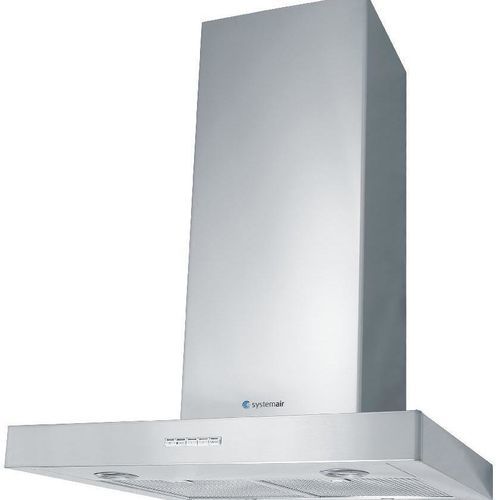

Wall-mounted range hood STIL

ductedwith built-in lightinggray

Product Summary
Slimline wall-mounted cooker hood offering effective extraction for connection to SAVE and central ventilation units.

Key Features

• Slimline design
• Wall mounted
• Efficient extraction
• Easy maintenance
• Motorised damper for ventilation

Benefits
Efficient odour extraction
The design and construction of the STIL cooker hood facilitates effective odour extraction >75% at 165 m3/h.

Compact design
The STIL cooker hood has a modern stainless steel design with a slim 33 mm front, suitable for installations with limited space.

Easy cleaning
The stainless steel wire filter is removable and can be cleaned by hand in hot, soapy water or in a dishwasher (recommended monthly).

Additional Product Information
The STIL cooker hood integrates a motorised, adjustable ON/OFF damper and a replacement damper option for basic ventilation. The cover includes LED lighting to illuminate the workspace. The hood must be connected to the 5th duct on the SAVE unit and wired to the universal input (UI) on the connection box. Other sizes are available in the range.

Technical specifications

• Design: Slimline stainless steel
• Mounting: Wall mounted
• Extraction performance: >75% odour extraction at 165 m3/h
• Front thickness: 33 mm
• Damper: Motorised, adjustable ON/OFF; replacement damper option
• Filter: Stainless steel wire filter, removable
• Filter cleaning: By hand in hot, soapy water or in dishwasher (recommended monthly)
• Lighting: LED cover lighting
• Connection: Connect to 5th duct on SAVE unit; wire to universal input (UI) on connection box
• Range: Other sizes available
