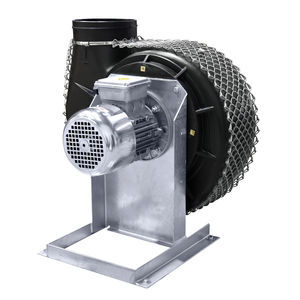

Centrifugal fan PRF AC
ductfree-standingindustrial

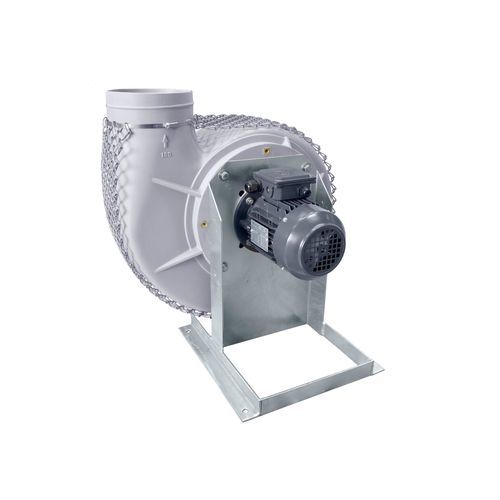

Centrifugal fan - PRF AC - Systemair - duct / free-standing / industrial
Centrifugal fan - PRF AC - Systemair - duct / free-standing / industrial
Centrifugal fan - PRF AC - Systemair - duct / free-standing / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Installation
duct, free-standing
Sector
industrial
Location
indoor, outdoor
Material
galvanised steel, plastic, polypropylene
Color
silver-colored
Air flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 16,999 m³/h
(600,314 ft³/h)

Noise level

27 dB

Weight

6.2 kg
(13.67 lb)

Power

Min.: 4 W

Max.: 7,699 W

Description

Product overview
  • Dependable power for handling aggressive media
  • Flexible use with rotatable casing and pedestal options
  • Suitable for transported air temperatures from 0°C to +60°C
  • Casing made from UV-resistant, waterproof PEs (DN75 PPs-el)


Applications
  • Food industry
  • Electronics industry
  • Medical facilities
  • Chemical industry


Benefits
  • Flexibility: PRF range is developed for environments with dirt, corrosive gases or other challenging elements; components are selected for reliable operation under adverse conditions.
  • Modularity: Rotatable unit casing and configurable pedestal allow adaptation to multiple installation layouts; specify left/right rotation when ordering.
  • Accessories (overview): Wide accessory options available including duct connections, dampers and control accessories. Standard accessories vary by motor version.


Accessories (standard)
AC version (standard)
  • Motor with PTC (DN75 thermocontact)
  • Splinter protection (except DN75)
  • Condensate drain (except DN75)


EC version (standard)
  • Repair switch IP66
  • Splinter protection
  • Condensate drain


Features
  • Construction: Sintered, rotatable casing in UV-resistant, waterproof PEs (DN75 PPs-el). Pedestal in galvanized steel (DN75 pedestal powder coated). Motor mounted outside the airstream as standard.
  • Impeller: Single-flow impellers in PPs (DN75 PPS-el) with effective blade geometry; dynamically balanced and matched to external-rotor motors.
  • Motor: Available with AC (IEC, up to IE3) or EC motors; suitable for 50 Hz and 60 Hz—confirm on order.
  • Motor protection: AC motors include integrated thermistor PTC (DN75 thermocontact). EC motors include electronic thermal protection, locked-rotor protection and soft-start.
  • Control: AC motors can be controlled via frequency converter. EC motors can be controlled via potentiometer (accessory) or external 0–10 V signal.
  • Installation: Intended for indoor use; outdoor use possible with specific accessories. With mounted pedestal the unit stands on the floor. Use flexible duct connections to avoid vibration transfer.


Case studies & references (examples)
  • Reliable ventilation solution for a fast-track automotive service facility
  • Climate engineering for a multifunctional ice-hockey arena with strict acoustic and scheduling constraints
  • Basement car park ventilation for major mixed-use developments


Technical specifications
  • Model name: PRF
  • Temperature range (transported air): 0°C to +60°C
  • Casing material: UV-resistant, waterproof PEs (DN75 PPs-el)
  • Impeller material: PPs (DN75 PPS-el), single-flow, dynamically balanced
  • Pedestal: Galvanized steel (DN75), powder coated
  • Motor types: AC (IEC, IE3) or EC
  • Motor position: Outside the airstream (standard)
  • AC motor protection: Integrated PTC (DN75 thermocontact)
  • EC motor protection: Electronic thermal protection, locked-rotor protection, soft-start
  • Control options: Frequency converter (AC); potentiometer or 0–10 V external signal (EC)
  • Accessories (standard): See AC/EC accessory lists above (PTC, splinter protection, condensate drain, repair switch IP66 etc.)
  • Typical applications: Food, electronics, medical, chemical industries
  • Installation notes: Use flexible duct connections to prevent vibration transfer; casing rotatable for configuration (left/right change must be specified when ordering)
