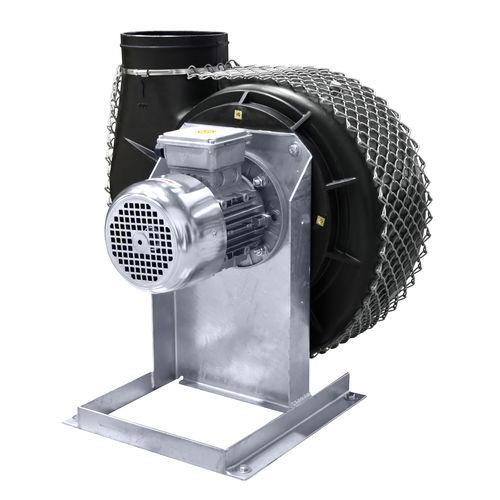

Centrifugal fan PRF-EXfree-standingindustrialoutdoor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Installation
- free-standing
- Sector
- industrial
- Location
- outdoor
- Material
- galvanised steel, steel, plastic, fiberglass
- Color
- silver-colored
- Other characteristics
- fume extraction
- Air flow
Min.: 80 m³/h
(2,825.2 ft³/h)Max.: 14,500 m³/h
(512,062.7 ft³/h)- Weight
Min.: 6 kg
(13.23 lb)Max.: 172 kg
(379.2 lb)- Width
Min.: 211 mm
(8 in)Max.: 1,435 mm
(56 in)- Power
Min.: 4 W
Max.: 8,060 W
Description
Overview
Benefits
Features
Technical specifications
- Speed controllable, explosion-proof centrifugal fan designed for exhausting potentially explosive gases and handling aggressive media.
- Certified according to ATEX 2014/34/EU.
- Constructed for flexible use across industries including food, electronics, medical and chemical sectors.
Benefits
- Safety: Engineered to operate in environments with explosive atmospheres; tested to ATEX 2014/34/EU to ensure compliance after installation.
- Application flexibility: Suitable for contaminated or corrosive process gases thanks to selected materials and robust design.
- Modularity: Rotatable casing position (UV-resistant, waterproof PE-el; PPs-el for DN75) enables adaptation to various installation layouts.
- Wide temperature and gas compatibility: Usable in temperature classes T1 to T4 and for exhaust in Zone 1 and Zone 2; supports gas groups IIA, IIB and hydrogen.
Features
- Construction: Sintered, UV-resistant and waterproof PE-el casing (PPs-el for DN75). Casing position adjustable by rotation (standard GR360, GL360 for DN75). Pedestal in galvanized steel (powder-coated steel for DN75).
- Impeller: Single-flow impellers in PP-el (PPs-el for DN75; GFK for 500D4) with efficient blade geometry; statically and dynamically balanced; matched to IEC Ex db motor.
- Motor: Explosion-proof motor Ex db (Ex for DN75) with terminal box Ex eb.
- Motor protection: Integrated PTC thermistors requiring connection to a motor protection device.
- Control: Speed controllable by frequency converter. Note: PRF EX 75 is not suitable for inverter duty; motors must be tested and certified with the specific inverter type for inverter operation.
- Installation: Floor-mounted on pedestal. Use of flexible connection recommended to reduce vibration transmission to ducting.
Technical specifications
- Certification: ATEX 2014/34/EU.
- Temperature classes: T1 to T4.
- Explosion zones: Exhaust possible in Zone 1 and Zone 2.
- Gas groups: IIA, IIB and hydrogen.
- Casing material: UV-resistant, waterproof PE-el (PPs-el for DN75).
- Pedestal: Galvanized steel (powder coated for DN75).
- Impeller material: PP-el (PPs-el for DN75; GFK for 500D4).
- Motor: Explosion proof Ex db (Ex for DN75) with terminal box Ex eb.
- Motor protection: Integrated PTC thermistors (requires connection to motor protection device).
- Control: Speed controllable via frequency converter (PRF EX 75 not suitable for inverter duty).
- Installation: Floor-mounted with pedestal; flexible connection recommended to minimize vibration transfer to ducting.
