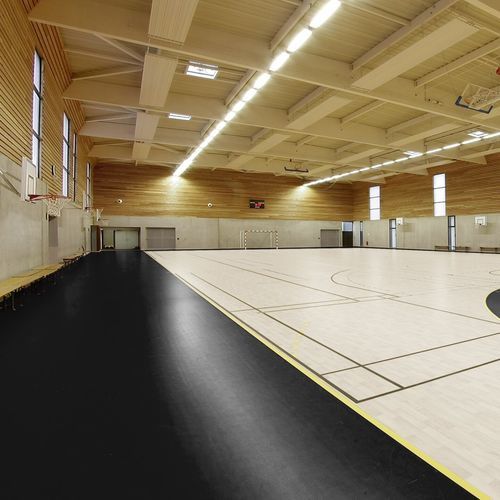

Indoor sports flooring LUMAFLEX EVOLUTION E REFERENCE MULTI-USE

birchpolyethylenepolyurethane

Overview
Reliable sports performance, fast installation and cost-efficiency for multi-sport facilities. The Lumaflex Evolution E sub-construction combined with Omnisports Reference Multi-use achieves C3 classification (EN 14904) and delivers up to 54% shock absorption for improved comfort and safety. The simplified panel system reduces installation time and labour costs, making it suitable for school gyms, community halls and similar projects where timelines and budgets are constrained.

Key Features

• Made in France
• High performance: C3-compliant (EN 14904)
• Fast-installation solution for multi-sports
• Resistance suitable for intermediate multi-use

Available colours (selection shown)

• Concrete Deep Blue
• Uni Tonic Blue
• Uni Night Blue
• Uni Sky Blue
• Uni Lagoon
• Uni Teal
• Uni Tonic Green
• Uni Tonic Yellow
• Uni Tonic Orange
• Uni Coral
• Uni Tonic Red
• Uni Cranberry Pink
• Wood Nordic Oak (and other wood visuals)

Environmental / Technical - Packaging & Format

• Omnisports Compact available in 2 m wide rolls (where applicable)
• Lumaflex Evolution panels available in 2400 x 1200 x 18 mm format
• Warranty: 15 years

The Construction

• 1: Superior performance and long-term savings
  Omnisports Reference Multi-use (6.2 mm) is reinforced with factory-applied Top Clean XP™ surface treatment for enhanced durability and reduced maintenance costs.
• 2: Resistance & stability
  Lumaflex Evolution panels, 18 mm thick, manufactured from birch with a single tongue-and-groove interlocking system provide strong resistance to point and rolling loads and maximize dimensional stability.
• 3: Comfort & performance
  Tarfoam 60: 15 mm polyurethane foam underlay provides improved shock absorption and playing comfort.
• 4: Effective protection against humidity
  Tarfilm polyethylene vapour barrier protects the floor system from ground moisture.

Installed references (examples)

• Léo Lagrange gymnasium — Val de Reuil, France — Installed 2022 — Size: ~1,400 sqm — Product family: Lumaflex / Omnisports Reference Multi-use
• Idrottshuset Jönköping — Jönköping, Sweden — Installed 2019 — Size: ~1,000 sqm — Multi-sports (handball, floorball)
• Jean Granelle Gymnasium — Villeneuve Loubet, France — Installed 2020 — Size: ~1,000 sqm

Technical specifications

• Product line: Lumaflex Evolution E combined with Omnisports Reference Multi-use
• Performance classification: C3 (EN 14904)
• Shock absorption: up to 54%
• Top surface treatment: Top Clean XP™ (factory-applied)
• Omnisports Reference Multi-use thickness: 6.2 mm
• Lumaflex panel thickness & format: 18 mm panels, 2400 x 1200 mm
• Panel material: Birch
• Interlocking: single tongue & groove system
• Underlay: Tarfoam 60, 15 mm polyurethane foam
• Vapour protection: Tarfilm polyethylene film
• Formats available: rolls for some Omnisports variants (2 m wide) and panels for Lumaflex
• Typical applications: school gyms, community halls, multi-use sport facilities
• Warranty: 15 years
