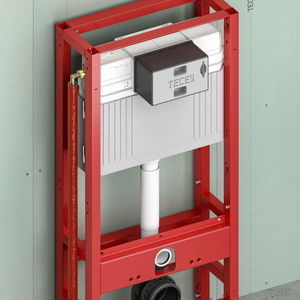

Installation unit with toilet tank TECEPROFIL MODULE

for wall-mounted toiletsfor urinalfor wall-mounted washbasins

Product overview
The TECEprofil sanitary modules are pre-assembled for dry-wall construction in a statically self-supporting mounting frame capable of withstanding heavy loads. They simplify common sanitary installations (washbasin, shower-toilet, toilet modules including versions with integrated hygiene flush), enabling a single fitter to carry out installation safely and efficiently.

Key benefits

• Pre-assembled sanitary modules ready for dry-wall construction
• Statically self-supporting mounting frame for heavy loads
• Designed for simple and fast installation by a single fitter
• Variants include toilet modules with integrated hygiene flush to support drinking-water hygiene

Equipped for every installation situation
TECEprofil modules can be installed in multiple mounting scenarios using dedicated accessories and mounting sets. They fit the TECEprofil installation system or can be integrated into metal or timber framing. Installation options include free-standing TECEprofil walls, metal stud walls, timber stud walls, TECEprofil pre-walls, individual installation in front of solid structural walls, corner assembly and angled wall assembly at 45°.

45° wall bracket
New wall brackets with a prefabricated 45° angle enable simple corner assembly. Threaded rods are fitted with brackets to support cladding and are fixed to the wall with the supplied mounting set for angled installations.

Installation highlights and practical features

• Freestanding installation: TECEprofil supporting feet brace free-standing supporting frames

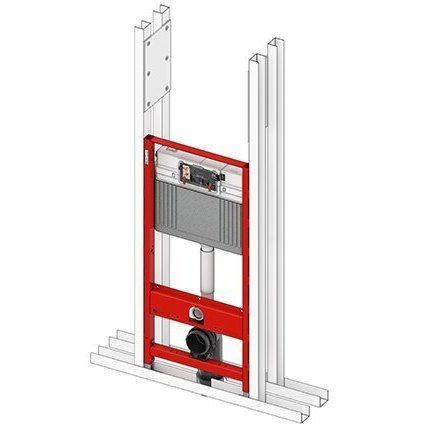

• Metal stud wall: mounting set for flush-mounted profile walls to attach modules to lateral flush-mounted profiles
• Timber stud wall: mounting set to attach modules to lateral stud structures
• Depth-adjustable module attachment with installation spacing approx. 150 to 240 mm for installation in front of a solid structural wall
• Height-adjustable module attachment for installation height ranges (example: approx. 1190 to 1300 mm)
• ZIP installation tunnel (polystyrene bare-wall protection) for safe, cutter-free shortening and removal of the installation tunnel at required depth
• Easy fit flush plate installation to mount the flush plate in one step without readjustment or measuring
• High compatibility: TECE flush plates and components designed for interchangeability and long-term conversion/modernisation

Accessories & variants
Multiple module variants are available for washbasin connections, toilet modules (including modules with integrated cisterns and hygiene flush), geronto modules, washbasin modules, urinal modules and bidet/bath-shower modules. A range of mounting accessories and components adapts the modules to specific structural conditions.

Technical specifications

• Series / denomination: TECEprofil
• Mounting frame: statically self-supporting, designed for heavy loads
• Installation spacing (depth-adjustable): approx. 150 to 240 mm
• Installation height (example height-adjustable range): approx. 1190 to 1300 mm
• Corner assembly: available 45° wall bracket with prefabricated angle
• Installation options: freestanding TECEprofil wall, metal stud wall, timber stud wall, TECEprofil pre-wall, installation in front of solid structural wall, corner assembly
• Special features: ZIP installation tunnel for safe shortening/removal; Easy fit flush plate mounting; modules available with integrated hygiene flush for improved drinking-water hygiene
