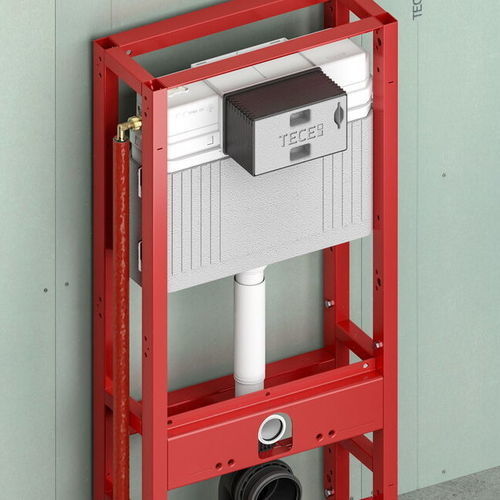

Wall-mounted toilet installation unit TECECONSTRUCT

Overview
TECEconstruct is a prefabricated toilet module with a uni cistern in a single module: fully pre-assembled and sealed. Proven flushing technology installs quickly and the module is designed for installation in a variety of mounting situations.

Key points

• Uni cistern in a single module: fully pre-assembled and sealed.
• Proven flushing technology for fast installation.
• Can be installed free-standing, in a solid wall or in a stud wall.
• Supplied with simple accessories from the TECEconstruct range to adapt to different installation situations.

Design & Installation
Self-supporting toilet pre-wall installation made easy: four free-standing feet and a double frame enable the TECEconstruct toilet module "Premium" to be installed solely on the floor without force-transferring attachment points on the wall. Modules are statically self-supporting and durable up to 400 kg.

Installation types and examples

• Individual module installation in front of a solid structural shell wall (e.g. with depth-adjustable TECEprofil module attachment with installation spacing 150 to 240 mm).
• Installation in a metal stud wall (e.g. with TECEprofil mounting set for UA profile walls).
• Installation in a wooden stud wall (e.g. with TECEprofil mounting set for wooden post-and-beam walls).

Accessories & Variants
Simple accessories from the TECEconstruct range allow fitting to different installation situations. Also available as a version for free-standing assembly.

Technical specifications

• Product family: TECEconstruct prefabricated toilet module.
• Uni cistern: pre-assembled and sealed inside the module.
• Load capacity: statically self-supporting and durable up to 400 kg.
• Installation methods: free-standing, solid wall mounting, metal stud wall, wooden stud wall.
• Premium version enables floor-only installation via four free-standing feet and double frame (no wall attachment required).
• Compatible mounting accessories: TECEprofil mounting sets; depth-adjustable module attachment with installation spacing 150–240 mm (for solid wall setups).
• Intended use: quick toilet installation with proven flushing technology.
