Direct turntable SL-1200GME

4578anti-vibration material

Overview

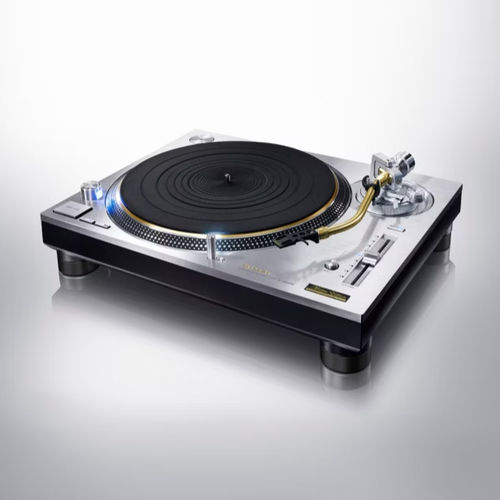

The Technics SL-1200GME Master Edition is a limited-edition direct-drive turntable that incorporates a decade of Technics engineering. It features a gold-painted magnesium tonearm, a gold-embossed logo with serial plate and is offered as the Silver model SL-1200GME (limited production).

Master Edition design

• Gold logo & serial plate: Gold-painted embossed logo and dedicated serial number plate for the limited run.
• Gold-finished tonearm: Magnesium tonearm with gold paint.

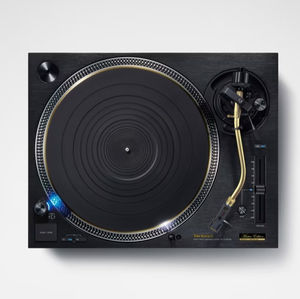

• Available colours: Silver (SL-1200GME) and Black (SL-1210GME).

Drive technology
Coreless direct-drive motor with twin-rotor construction reduces cogging and bearing load while delivering stable, high-torque rotation. Coil mounting reinforcement follows the pattern used on Reference-class models for improved rigidity and rotational stability.

ΔΣ-Drive (Delta Sigma Drive)
Upgraded ΔΣ-Drive increases PWM carrier frequency from ~2 kHz to >20 kHz, reducing audible noise and suppressing micro-vibrations for improved audio precision.

Multi-stage silent power supply & noise control
The turntable integrates a low-noise switching circuit and active noise-cancelling via inverse current injection. A high-speed switching power supply (>100 kHz) provides stable, low-ripple output and reduced vibration.

Vibration resistance design

• Three-layer platter: Combined brass and aluminium die-cast platter with a rear damping rubber sheet for resonance suppression; total platter mass ~3.6 kg (with rubber).
• Four-layer cabinet: Aluminium die-cast, BMC, heavyweight rubber base plus a 10 mm hairline-processed aluminium top panel for high rigidity.
• High-level balance adjustment: Each platter is factory-balanced and labelled "BALANCED" after adjustment.
• Insulators: New zinc isolators using αGEL™ gelatinous material for effective shock absorption and vibration damping.

Tonearm
Lightweight cold-drawn magnesium tonearm with gimbal suspension and high-precision bearings for high initial-motion sensitivity and accurate tracking.

Circuit board layout
Four-layer PCB separates power and ground lines for motor, digital and LED circuits to improve rigidity and minimize noise. Combined design measures (low-noise switching, active noise cancelling and upgraded ΔΣ-Drive) reduce motor-induced noise.

Eco and packaging
Packaging uses eco-friendly cushioning (corrugated cardboard replacing styrene foam), reducing plastic by ~70% compared to previous packaging. Accessories are consolidated into a single box for improved handling while maintaining protection.

Included accessories

• Turntable
• Turntable mat
• Dust cover
• EP record adaptor
• Balance weight
• Auxiliary weight
• Headshell
• Overhang gauge
• Screw set for cartridge
• Cartridge spacer
• PHONO cable
• PHONO earth lead
• AC power cord
• Screw set for turntable
• Owner's manual

Technical specifications

• Model: SL-1200GME
• Drive method: Direct Drive (coreless direct-drive, twin-rotor)
• Motor: Brushless DC motor
• Turntable speeds: 33-1/3, 45, 78 rpm (78 rpm setting = 78.26 rpm)
• Starting torque: 0.32 N·m (3.3 kgf·cm)
• Build-up characteristics: 0.7 s to 33-1/3 rpm from stop
• Braking system: Electronic brake
• Wow & flutter: 0.025% W.R.M.S.
• Turntable platter: Brass + aluminium die-cast; diameter 332 mm; weight approx. 3.6 kg (including rubber sheet)
• Tonearm type: Static balance (magnesium)
• Effective length (tonearm): 230 mm
• Overhang: 15 mm
• Tracking error angle: Within 2°32' (outer groove of 30 cm/12") and within 0°32' (inner groove)
• Offset angle: 22°
• Arm height adjustment range: 0 - 6 mm
• Stylus pressure adjustment range: 0 - 4 g (direct reading)
• Headshell weight: Approx. 7.6 g
• Cartridge mounting dimension: 12.7 mm (1/2")
• Headshell terminal lug: 1.2 mmφ 4-pin
• Audio output terminals: PHONO (Pin Jack) x1; EARTH terminal x1
• Power supply: AC 220-240 V, 50/60 Hz
• Power consumption: 11 W (ON); 0.3 W (OFF)
• Dimensions (W x H x D): 453 x 173 x 372 mm
• Weight: Approx. 18.0 kg
• Operating temperature: 0°C to +40°C
• Operating humidity: 35% to 80% RH (no condensation)
