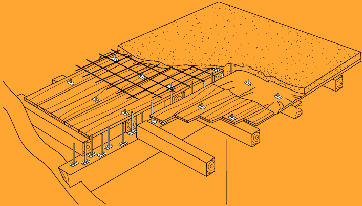

combi structural floor / wooden / concrete

{{requestButtons}}

Characteristics

  • Type:

    combi

  • Material:

    wooden, concrete

Description

CONNECTOR COMPOSITION
-A 12 mm headed stud
-A 4 mm thick 50x50 square pressed base plate with folded corners to create crampons. The stud connector and the base plate are cold riveted together.
-Two 8 mm coach screws going through the two holes of the plate.

Galvanised steel screws with sharp Ø 8.0 mm tip, length 70, 100 and 120 mm. All the connector components are zinc plated with an average protection thickness of 8 μm, corresponding to 2 cycles of "Kesternich" corrosion resistance.

SPECIFICATIONS
Dowel connector comprising a 50 x 50 x 4 mm base plate with crampons and two holes for 8 mm diameter screws with tapered necks and a 12 mm diameter zinc coated dowel, riveted to the plate. Available dowel heights: 20, 30, 40, 60, 70, 80, 105, 125, 150, 175 and 200 mm. Available screw lengths: 70, 100 and 120 mm
