-a 12 mm headed stud
-a rectangular 38x54 mm pressed steel base plate, 4 mm thick. The stud connector and the base plate are riveted together
-Two nails going through the two holes of the plate
All the connector components are zinc plated with an average protection thickness of 8 μm, corresponding to 2 cycles of "Kesternich" corrosion resistance. The nails used are of carbon steel Ø 4.5 mm, length 22.5 mm, Ø head 14 mm.

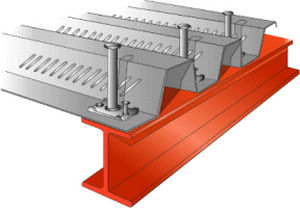

Zinc plated steel shear stud connector, 12 mm shank diameter with head, cold riveted to a 38 x 54 x 4 mm base plate, fastened to the steel structure by the two nails.
