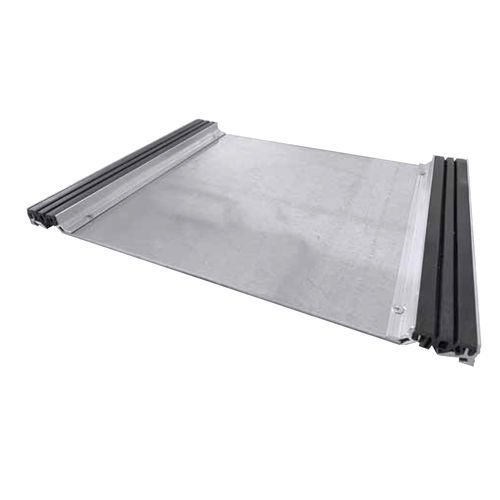

Rubber expansion joint K UP SLIM

metalreinforced concretegalvanized

Expansion joint system for floor joints, subject to high movement. Suitable for pedestrian traffic areas. The system consists of a central pan made of galvanized sheet, to be filled with reinforced concrete (thickness min. 40 mm) and/or floor finish material, two rubber gaskets. Exceeded the thermal movement, the central pan pops up until its thickness. the maximum movement of gaskets is regulated by metal cables that prevent the fall of the pan. • Reduced visual impact. • Bar length 3 m. • L = 50/60 mm self-tapping fixing. • Black gaskets. • Custom ultimate movement available U≤G On request: profiles to length, special pieces, floor / wall versions, Custom ultimate movement available U≤G.
