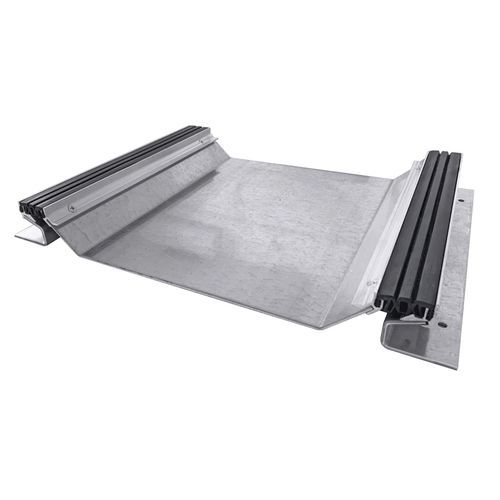

Rubber expansion joint K UP M50

metalreinforced concretefor floor

Expansion joint system for floor joints, subject to high movement. Suitable for pedestrian traffic areas. The system consists of a central pan made of galvanized sheet, to be filled with reinforced concrete (thickness min. 40 mm) and/or floor finish material, two rubber gaskets. Exceeded the thermal movement, the central pan pops up until its thickness. the maximum movement of gaskets is regulated by metal cables that prevent the fall of the pan. • Reduced visual impact. • Bar length 3 m. • L = 50/60 mm self-tapping fixing. • Black gaskets. • Custom heights available. • Custom ultimate movement available U≤G On request: pro les to length, special pieces, oor / wall versions, high resistance versions (Kit R).
