Electronic lock GO2 CYLINDER FULL BUNDLE

electromechanicalbiometriccam

Overview

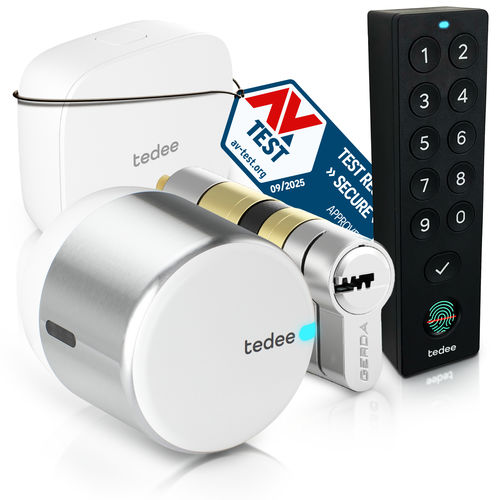

More power, less noise. Same easy installation. A do-it-yourself smart lock solution that fits existing European cylinders and delivers smartphone, PIN and biometric entry. This bundle contains the Tedee GO2 smart lock (TLV2.0), Tedee Bridge and Tedee Keypad PRO for local and remote access.

Main features

• Smartphone entry, automatic locking/unlocking and sharing of virtual keys via the Tedee app.
• Tedee Keypad PRO: PIN unlocking and optional fingerprint access (up to 100 fingerprints); powered by 4x AAA or wired 5–24V DC input; suitable for outdoor installation.
• Tedee Bridge: connects Tedee devices via Bluetooth to local Wi‑Fi for remote access, real‑time activity logs and smart home integrations.
• Voice assistant support via Bridge (Google Assistant, Amazon Alexa) and integrations with 15+ smart home systems.

Compatibility & mounting
Designed for installation on existing European cylinders with emergency function (when a key inserted on both sides turns together). Compatible with cylinders that fit Tedee PRO and with deadbolt/oval mortise adapters when used with the Tedee GO2 bar adapter. Keypad PRO can be mounted with the pre-applied adhesive pad or with screws; position up to 2 m from the smart lock and Bridge for optimal performance.

Cylinder options

• Cam cylinders: GERDA SLR 30–61 mm / 30 mm (A)
• Cam cylinders: GERDA SLR 30–61 mm / 37–68 mm (C)
• Gear cylinders: GERDA SLR 30–61 mm / 30 mm (B)
• Gear cylinders: GERDA SLR 30–61 mm / 37–68 mm (D)

Power and batteries
Tedee GO2 is powered by 3x CR123/CR123A batteries (typical life up to 6–8 months). Tedee Keypad PRO is powered by 4x AAA batteries or wired input (5–24V DC). For rechargeable batteries in the smart lock, use only manufacturer‑specified types to ensure sufficient peak discharge current.

Box contents

• Tedee GO2 smart lock
• 3x CR123/CR123A batteries
• Installation adapter (if required for specific locks)
• Allen key
• Cleansing wipe
• Tedee Bridge
• Power adapter
• Tedee Keypad PRO
• 4x AAA batteries
• 4x wall plugs and mounting screws
• Wired input adapter cable
• GERDA SLR modular cylinder with accessories (variant dependent)
• Tedee GO bar adapter
• Activation code card
• Quick start manual and safety information booklet

Technical specifications

• Smart lock model: TLV2.0
• Tedee GO2 weight: approx. 196 g
• Tedee GO2 dimensions: Ø 58 mm x 65 mm
• Operating temperature (GO2): 10–40°C (indoor only)
• Operating humidity (GO2): max. 65%
• Torque (GO2): 1.6 Nm
• Country of origin (GO2): Poland, EU
• Power supply (GO2): 3x CR123/CR123A
• Battery life (GO2): up to 6–8 months
• Security (GO2): TLS 1.3
• Tedee Bridge dimensions: 64.5 x 63.5 x 28 mm
• Bridge power supply: 5V = 300 mA
• Bridge Wi‑Fi: 2.4 GHz; Bluetooth: BLE 5.0
• Keypad model: TKV2.0
• Keypad dimensions: 125 x 33 x 23.5 mm
• Keypad weight: 68 g (without batteries), 115 g (with batteries)
• Keypad power: 4x LR03 AAA 1.5V or 5–24V DC wired input
• Keypad battery life: 12+ months
• Keypad Bluetooth: BLE 5.2 (2.4 GHz)
• Recommended keypad setup distance: max. 2 m from the smart lock and Bridge
