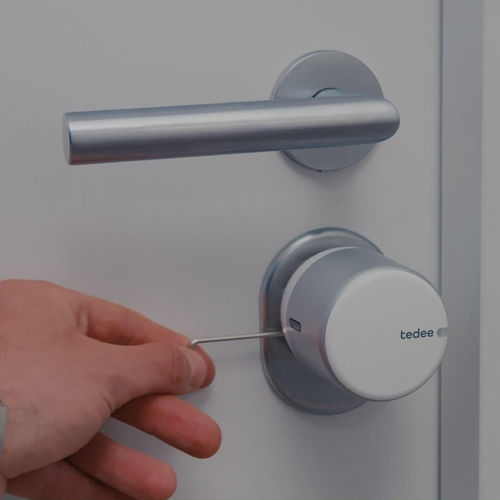

Electronic lock GO2 KEYPAD BUNDLE

combinationbiometric fingerprintremote-controlled

Overview
More power, less noise. Same easy installation. Tedee GO2 smart lock bundled with a certified cylinder and a wireless Tedee Keypad PRO for PIN and fingerprint unlocking. The bundle supports smartphone entry, PIN and fingerprint unlocking, automated locking/unlocking and creation and sharing of virtual keys and PINs via the Tedee app.

Key features

• Multiple unlocking methods: smartphone, PIN, fingerprint and physical key from outside.
• Tedee Keypad PRO supports PIN and fingerprint unlocking and is suitable for outdoor installation.
• Access management: create and share virtual keys and up to 100 active PINs with permanent, periodic or one-time access options.
• Automated locking/unlocking and full activity logs when paired with the Tedee Bridge.

Compatibility & requirements
Tedee GO2 installs on an existing European cylinder that has an emergency function (when keys are inserted on both sides, turning one key rotates the other). Compatible with cylinders that fit Tedee PRO and with deadbolt and oval mortise adapters when used with the GO2 bar adapter.

Installation & power (Keypad)
The Tedee Keypad PRO can be powered by 4x AAA batteries or by wired power (5–24V DC, 0.5A). It mounts using the included adhesive pad or screws (both supplied). Recommended placement: up to 2 m from the Tedee GO2 for optimal performance.

Connectivity & integrations
Pair the smart lock with the Tedee Bridge for remote control, real-time activity logs and integration with compatible smart home systems (examples: Google Home, Amazon Alexa, Homey, FIBARO, Loxone and others supported by Tedee).

Box contents (summary)

• Tedee GO2 smart lock
• Tedee Keypad PRO (wireless keypad)
• 3x CR123 / CR123A batteries
• Installation adapter (where required)
• Allen key, Torx key
• Cleansing wipe pad
• GERDA SLR modular cylinder with accessories
• Tedee GO bar adapter
• Documentation

Technical specifications

• Tedee GO2 weight: approx. 196 g
• Tedee GO2 dimensions: Ø 58 mm x 65 mm
• Tedee GO2 operating temperature: 10–40°C (indoor only)
• Tedee GO2 operating humidity: max. 65%
• Tedee GO2 torque: 1.6 Nm
• Tedee GO2 country of origin: Poland (EU)
• Tedee GO2 power supply: 3x CR123 / CR123A batteries
• Tedee GO2 battery life: up to 6–8 months
• Tedee GO2 security: TLS 1.3
• Keypad model: TKV2.0
• Keypad dimensions: 125 x 33 x 23.5 mm
• Keypad weight: 68 g (without batteries), 115 g (with batteries)
• Keypad installation options: adhesive pad (pre-applied) or wall plugs and screws (included); suitable for outdoor installation
• Keypad power supply: 4x LR03 AAA 1.5V batteries or 5–24V DC, 0.5A wired input
• Keypad battery life: 12+ months
• Keypad frequency range: 2.4 GHz to 2.483 GHz (Max output power: 8 dBm)
• Keypad operating temperature (with included batteries): -18°C to +54°C
• Keypad operating temperature (wired power input or lithium-ion batteries): -30°C to +54°C
• Keypad operating humidity: up to 95%
• Keypad recommended setup distance: max. 2 m from the smart lock and Tedee Bridge
• Keypad box dimensions: 131 x 70 x 47 mm
• Keypad box weight: 191 g
