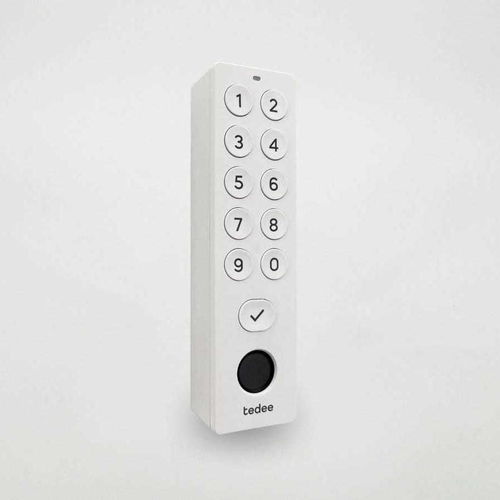

Security fingerprint reader KEYPAD PRO WHITE

for access controlwall-mountedstand-alone

Overview
Use the Tedee Keypad PRO to unlock Tedee PRO or Tedee GO smart locks with a fingerprint or 5–8 digit PIN — no app or smartphone required. The keypad supports fast, direct access and can be integrated into automated workflows via Tedee Bridge.

Key features

• Manage up to 100 fingerprints and 100 PINs with individual labels and customizable access permissions.
• Secure 5–8 digit PIN entry supporting up to 100 active codes for guests, staff or service providers.
• Local operation: unlock or lock from outside using the keypad button, with or without a PIN.
• Encrypted biometric tokens and no PINs stored in plain text on the device.
• Flexible mounting: pre-applied adhesive pad for smooth surfaces or wall plugs and screws for porous surfaces.
• Pair with Tedee Bridge and compatible channel management platforms to enable automated self check-ins for short-term rentals.

Installation & power
The keypad can be installed outdoors. Power options: 4x LR03 (AAA) 1.5V batteries for wireless use (battery life 12+ months) or 5–24V DC, 0.5A wired input for permanent power. Recommended setup distance: max. 2 m from the smart lock and Tedee Bridge.

Use cases

• Daily keyless access for homes and small offices.
• Access management for employees, contractors and visitors with activity logs.
• Short-term rental automation: flexible guest check-ins when paired with Tedee Bridge.

Package contents

• Tedee Keypad PRO (White)
• 4 x AAA batteries
• 4 x wall plugs and mounting screws
• Wired input adapter cable
• Activation code card
• Quick start manual and safety information booklet

Technical specifications

• Model: TKV2.0
• Keypad dimensions: 125 x 33 x 23.5 mm
• Weight: 68 g (without batteries), 115 g (with batteries)
• Installation options: Adhesive pad (pre-applied) or wall plugs and screws; suitable for outdoor installation
• Power supply: 4 x LR03 AAA 1.5V batteries or 5–24V DC, 0.5A wired input
• Battery life: 12+ months
• Wireless: BLE 5.2 (2.4 GHz)
• Frequency range / Max power: 2.4 GHz–2.483 GHz, max output power 8 dBm
• Operating temperature (with AAA batteries): -18°C to +54°C
• Operating temperature (wired input or Li-ion): -30°C to +54°C
• Operating humidity: Up to 95%
• Compatibility: Tedee PRO, Tedee GO, Tedee Bridge
• Recommended setup distance: Max. 2 m from the smart lock and Tedee Bridge
• Box dimensions: 131 x 70 x 47 mm
• Box weight: 191 g
