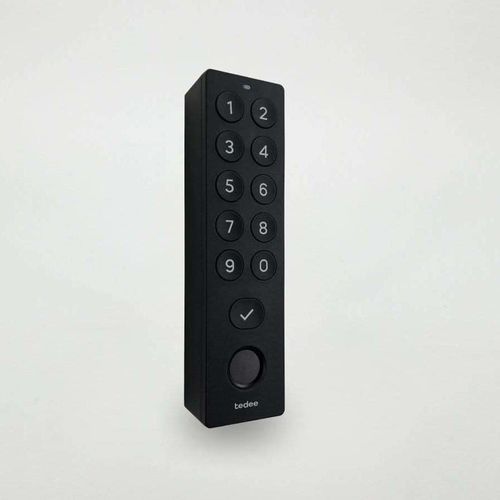

Security fingerprint reader KEYPAD PRO BLACK for access controlfor home automation systemdoor
Add to favorites
Compare this product
Characteristics
- Function
- for access control, for security, for home automation system, door
- Installation
- built-in
- Options
- outdoor, stand-alone, with optical sensor, Bluetooth, with customized access rights, with remote Management, with administration software
Description
Product overview
The Tedee Keypad PRO provides biometric and PIN access to Tedee smart locks, enabling keyless entry without a smartphone or app. It supports controlled access management for households, guests or staff and can be integrated with Tedee Bridge for automation scenarios such as self check-in for rentals.
Key features
How to use
Use a registered fingerprint or enter a PIN to unlock the door for daily access without keys or mobile devices. Configure, issue or revoke virtual keys and monitor access logs via the Tedee app. The keypad also allows locking from outside by pressing the button; configure whether a PIN is required.
Specification
The Tedee Keypad PRO provides biometric and PIN access to Tedee smart locks, enabling keyless entry without a smartphone or app. It supports controlled access management for households, guests or staff and can be integrated with Tedee Bridge for automation scenarios such as self check-in for rentals.
Key features
- Biometric unlocking: fingerprint recognition supporting up to 100 fingerprints, each assignable with custom access permissions.
- PIN access: secure 5–8 digit PIN codes; manage up to 100 active PIN codes for guests, visitors or employees.
- Local unlocking: fingerprint or PIN can be used without the Tedee app or a smartphone for everyday access.
- External locking: press the keypad button to lock the door from outside, with optional PIN requirement.
- Flexible power & installation: battery-powered (4× AAA) or permanent wired input (5–24V DC); mount with pre-applied adhesive pad or screws and plugs for outdoor use.
- Privacy & security: no PINs stored in plain text; fingerprint tokens are encrypted and non-sensitive.
- Rental automation: pairs with Tedee Bridge and compatible management platforms to automate guest access.
How to use
Use a registered fingerprint or enter a PIN to unlock the door for daily access without keys or mobile devices. Configure, issue or revoke virtual keys and monitor access logs via the Tedee app. The keypad also allows locking from outside by pressing the button; configure whether a PIN is required.
Specification
- Model: TKV2.0
- Dimensions: 125 x 33 x 23.5 mm
- Weight: 68 g (without batteries), 115 g (with batteries)
- Power: 4× LR03 AAA 1.5V batteries or 5–24V DC wired input (0.5A)
- Battery life: 12+ months
- Wireless: BLE 5.2, 2.4 GHz (2.4–2.483 GHz, max 8 dBm)
- Operating temperature: -18°C to +54°C (with batteries); -30°C to +54°C (wired power or lithium-ion)
- Operating humidity: up to 95%
- Compatibility: Tedee PRO, Tedee GO, Tedee Bridge
- Recommended setup distance: up to 2 m from the smart lock and Tedee Bridge
- Box dimensions: 131 x 70 x 47 mm
- Box weight: 191 g
- Box contents: Tedee Keypad PRO; 4× AAA batteries; 4× wall plugs and mounting screws; wired input adapter cable; activation code card; quick start manual; safety information booklet
