The MPS series is designed to control pedestrian access in basic security applications with surveillance. It may also be used as supplement to other Magnetic pedestrian gates, in particular to provide passage for wheelchairs and for per-sons carrying large items.

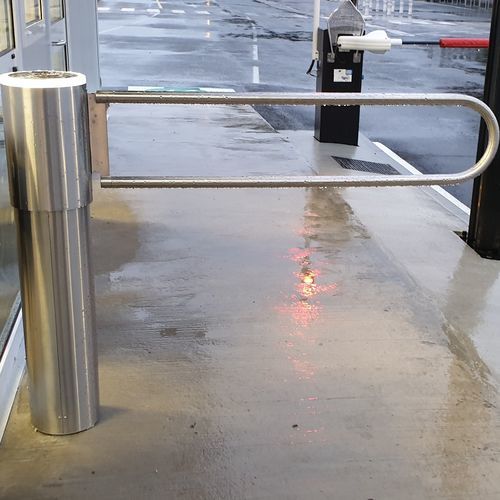

The MPS pedestrian gate consists of a tube with two or three brackets for mounting barrier elements. These can be stand-ard elements (see picture), glass or customer-specific ele-ments.
The MPS series can be used in bidirectional applications to control the entry and exit with only one gate.
Housing and quality
The housing (column) is basically a polished, grade 1.4301 (V2A) stainless steel tube with a diam-eter of 159 mm, which provides degree of protection IP 44. The drive unit is concealed within the housing and rotates the outer stainless steel tube. This rotatable part of the gate has two or three brackets for mounting barrier elements. These can be standard rails, glass flaps (toughened safety glass or laminated glass ), or customer-specific barrier elements.
Motor and control unit
The key component of the MPS drive is the highly dynamic MHTMTM motor with precision position feedback. The major feature of this motor is its high torque combined with harmonic opening and closing motions. This ensures fast acceleration and braking, and, at the same time, low forces and improved safety. The MBC-110 logic controller offers adjustable speeds and opening times. The opening angle is adjustable over a wide range from 10° to 300°.
