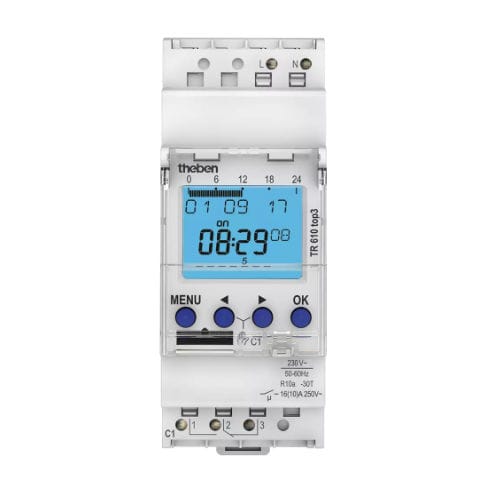

Lighting programmer TR 610 TOP3

DIN rail

Digital time switch with weekly program 1 channel Programming by app possible Safe transfer via optional Bluetooth Low Energy OBELISK top3 Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch 100 % compatible with top2 DuoFix spring terminals For 2 conductors each Wire or strand (with or without wire end sleeve) Wire diameter: 0.5 - 2.5 mm² Button for releasing plug-in connection Text-oriented user guidance in display Preset date and time fully operable without mains connection 56 memory locations Interface for OBELISK top2 memory card (PC programming) 2. insertable switching program Copying programs Storing programs 10 year power reserve (lithium battery) Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices) ON-OFF switching times Switching preselection Permanent switching ON/OFF Integrated operating hour counter Reset option Service function for monitoring maintenance intervals Holiday program Display back light (can be turned off) Permanent switching ON/OFF PIN coding Automatic summer/winter time changeover can be deactivated Date rule options are already stored for Europe, the USA and other countries own date rule options or changeover around set dates are available
