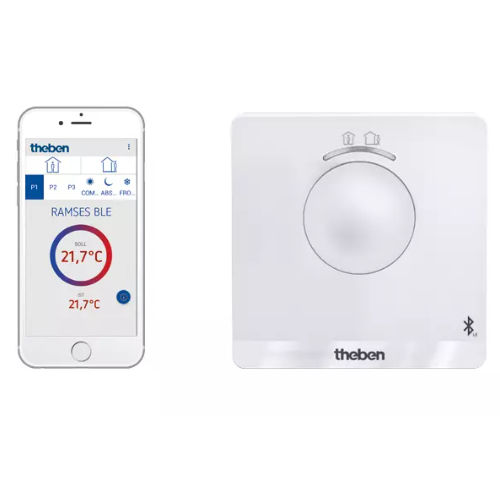

Digital clock thermostat for time-dependent monitoring and control of room temperature
Mains version
Suitable for energy-saving room temperature control in houses, apartments, etc.
Operation via app
Direct Bluetooth Low Energy (BLE) connection between the app and RAMSES BLE, no communication via the Internet
Settings configured conveniently via the app with intuitive operation from a smartphone or tablet
Increased user convenience
External input for the flexible connection of the external temperature sensor, floor sensor, motion detector or telephone contact
Intelligent control algorithm (pulse-duration controller, hysteresis controller)
Suitable for on/off heating systems, zone-based or single-room control, electric heating units
Operating voltage - 230 V AC
Frequency - 50 Hz
Type of contact - NO contact
Switching capacity - 8 A at 250 V AC, cos φ = 1, 1 A at 250 V AC, cos φ = 0.6
Setting range temperature - 2°C ... 30°C
Program - Weekly program
Number of memory locations - 42
Suitable for SELV - No
Power reserve - 4 hours
Type of protection - IP 20
Protection class - II according to EN 60 730-1
