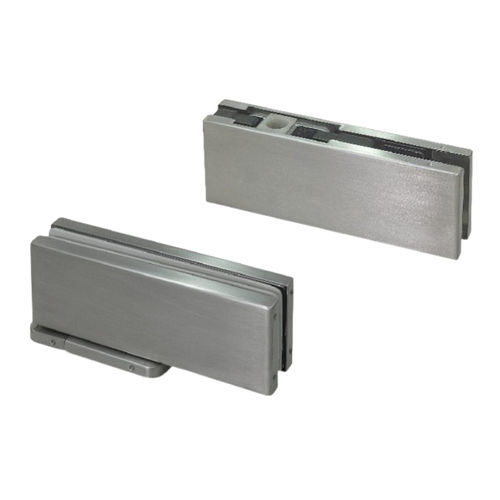

Polished stainless steel hinge G100 satin stainless steelhydrauliccommercial
Add to favorites
Compare this product
Characteristics
- Material
- polished stainless steel, satin stainless steel
- Technical characteristics
- hydraulic
- Market
- commercial
- Finish
- silver finish
- Style
- contemporary
- Other characteristics
- custom-made
Description
Mechanism with two closing speeds
Maximum opening of 150º
1st speed: approach speed, acts approximately from 90º to 10º
2nd speed: closing speed, acts approximately from 10º to 0º
Retention at ±90º
Thermostable hydraulic fluid. Flash point 160º, freezing point -40º
Certified according to UNE-EN 1154:2003/AC 2006 Grade 8 (500,000 cycles)
Certified according to UNE-EN 1670:2007/AC:2008 Grade 3 corrosion resistance
Finishes: polished stainless steel – satin stainless steel – matte black
Electrolytic finishes
RAL colors
