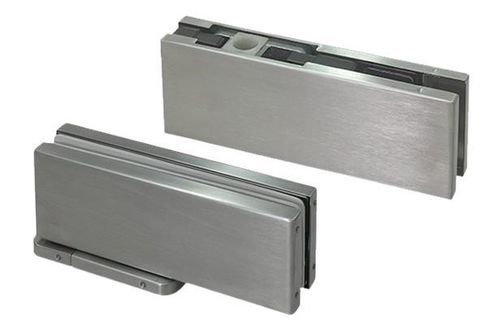

Hydraulic hinge G100 MINI

glass door

Product overview
TRIVEL G100 MINI is a compact indoor hydraulic pivot (hydraulic patch kit with integrated door closer) designed for interior glass doors. Its minimalist proportions are developed to match the GT series fittings, offering architects and fabricators a discreet closing solution integrated into the fitting without requiring floor‑mounted door stops or additional construction work. The unit is intended for single glass doors up to 60 kg and provides consistent aesthetics for contemporary interiors.

Technical specifications
Top dimensions: 164.5 x 28.6 x 50.5 mm
Bottom dimensions: 160 x 32 x 47 mm

• Load capacity: Supports doors up to 60 kg and maximum width 850 mm.
• Closing control: Mechanism with two adjustable speeds:
  • 1st speed — approach: operates from 150° to 10°.
  • 2nd speed — final closing: operates from 10° to 0°.
• Opening and hold: Maximum opening 150° with fixed hold at ±90°.
• Glass compatibility: Suitable for glass thicknesses from 8 to 13 mm.
• Standards & durability: Certified to UNE-EN 1154; durability 500,000 cycles (Grade 8).
• Corrosion resistance: Grade 3.
• Finishes: Standard finishes Bright, Satin and Black (other finishes available on request).

Characteristics / technical specifications

• Brand: TRIVEL
• Model: G100 MINI
• Type: Compact indoor hydraulic pivot kit (hydraulic patch kit with integrated door closer)
• Top dimensions: 164.5 x 28.6 x 50.5 mm
• Bottom dimensions: 160 x 32 x 47 mm
• Maximum door weight: 60 kg
• Maximum door width: 850 mm
• Glass thickness compatibility: 8–13 mm
• Maximum opening angle: 150°
• Fixed hold: ±90°
• Closing control: Two adjustable speeds (150°→10° approach; 10°→0° final closing)
• Standards & durability: UNE-EN 1154; 500,000 cycles (Grade 8)
• Corrosion resistance: Grade 3
• Available finishes: Bright, Satin, Black (standard finishes available on request)
