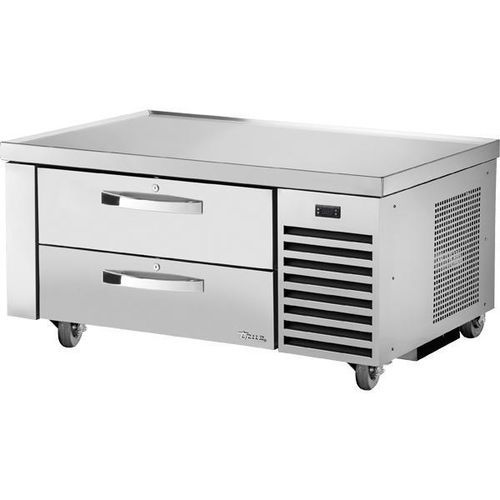

Refrigerated drawer TRCB-48-HC~SPEC3

Refrigerated drawer - TRCB-48-HC~SPEC3 - True Food International
Refrigerated drawer - TRCB-48-HC~SPEC3 - True Food International
Add to favorites
Compare this product

Description

Product overview
  • Drawered refrigerator SPEC3 package with R290 hydrocarbon refrigerant, designed for commercial foodservice and back‑of‑house refrigeration needs. Stainless steel construction and oversized refrigeration components ensure stable temperatures for open food products.


Design
  • Construction emphasizes corrosion-resistant stainless steel exterior and interior for hygienic food handling and easy cleaning.
  • Foamed-in-place high-density polyurethane insulation with zero ODP and zero GWP across cabinet and drawer facings.
  • One-piece reinforced 300 series stainless steel top with drip-resistant “V” edge; load capacity up to 717 lbs (326 kg).


Refrigeration system
  • Factory-engineered, self-contained capillary tube system using R290 hydrocarbon refrigerant (zero ODP; GWP 0.02).
  • Oversized, factory-balanced system with guided airflow for uniform product temperatures and rapid recovery.
  • Extra-large evaporator coil paired with higher-horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C).
  • Sealed, self-lubricating evaporator fan motor and large fan blades for efficient low-velocity, high-volume airflow.
  • Condensing unit accessible behind side grill; slides out for maintenance. Self-Cleaning RCU technology reduces condenser cleaning and energy use.


Cabinet construction
  • All stainless steel front, top, sides and back; interior stainless steel liner and floor with coved corners for sanitation.
  • Heavy-duty stainless steel cabinet top and reinforced structure for commercial workloads.


Drawers
  • Stainless steel exterior drawer facings and liners with stainless steel frames.
  • Heavy-duty all-metal working spec handles; stainless steel slides and rollers, removable without tools for cleaning.
  • Magnetic one-piece drawer gaskets, removable without tools.
  • Each drawer accepts two full-size 12"L x 20"W x 4"D (305 x 508 x 102 mm) food pans and supports multiple pan configurations (pans sold separately).


Model features
  • Evaporator epoxy coated for corrosion resistance.
  • Exterior digital temperature display for quick verification.
  • NSF/ANSI Standard 7 compliant for open food product.


Electrical
  • Unit fully pre-wired at factory; ready for final connection to 115/60/1, 15 A dedicated outlet. Cord and plug set included.
  • NEMA configuration: 5-15P / NEMA-5-15R receptacle.


Optional features / accessories
  • 220–240V / 50–60Hz electrical option.
  • 6" (153 mm) standard legs (set of 4 leg mounting plates required).
  • 6" (153 mm) seismic/flanged legs (set of 4 leg mounting plates required).
  • Heavy-duty 16 gauge top (available for flat and marine top).
  • Flat top (no marine edge).
  • Additional size drawer divider bars.


Technical specifications
  • Model: TRCB-48-HC~SPEC3
  • Drawer count: 2
  • Weight: 325 lbs (129 kg)
  • Dimensions (W x D x H): 48–3/8" / 1227 mm × 32–1/8" / 814 mm × 20–1/2" / 520 mm
  • Cord length: 10' / 3.05 m
  • Electrical: 2.4 A; 115/60/1 V/Hz/Ph; NEMA configuration 5-15P
