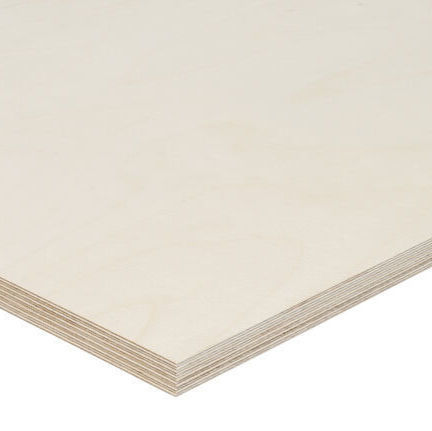

Construction plywood panel WISA®-LNG MARK III

buildinginsulatingsustainable

Overview
WISA®-LNG MarkIII is birch plywood intended for use as a structural material in insulation elements for the transport and storage of liquefied natural gas. The product provides excellent strength and dimensional stability across extreme temperature variations. It is approved for GTT Mark III, Mark III Flex and Mark III Flex+ technologies and certified by GTT and major classification societies.

End uses

• LNG insulation elements for transport and storage

Properties

• Designed for LNG
• Exterior glued (glue class for exterior use)
• Mark III approved
• Made in EU
• Sustainable material sourcing
• Wide thickness range
• Cut-to-size available
• High-performance panel

Product information
Available thicknesses:
9, 12, 15, 18, 24, 27, 35, 38, 92 mm

Standard size range:
1220/1250 x 2440/2500/3000/3050/3660 mm
1500/1525 x 2500/3000/3050/3660 mm

Maximum size:
1525 x 3660 mm

DoP document numbers:
UPM015CPR

Approvals and certification

• GTT approved for Mark III, Mark III Flex and Mark III Flex+ technologies
• Certified by major classification societies

Technical characteristics / specifications

• Material: Birch plywood
• Intended use: Structural material in LNG insulation elements
• Performance: Excellent strength and dimensional stability under extreme temperature variations
• Glue class: Exterior glued
• Approved technologies: GTT Mark III, Mark III Flex, Mark III Flex+
• Available thicknesses (mm): 9, 12, 15, 18, 24, 27, 35, 38, 92
• Standard panel sizes (mm): 1220/1250 x 2440/2500/3000/3050/3660; 1500/1525 x 2500/3000/3050/3660
• Maximum panel size (mm): 1525 x 3660
• DoP number: UPM015CPR
• Origin: Made in EU
