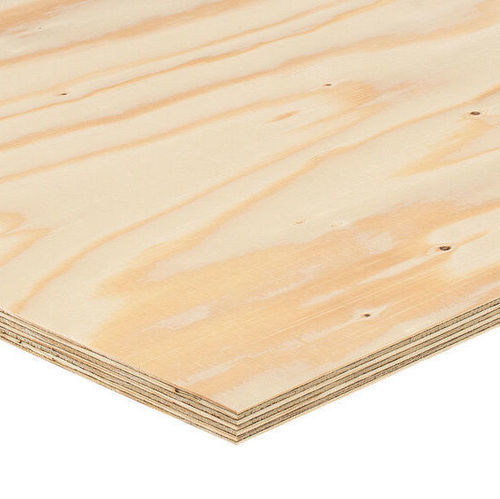

Construction plywood panel WISA®-LNG for interiorinsulatinghigh-resistance
Add to favorites
Compare this product
Characteristics
- Function
- construction
- Applications
- for interior
- Technical characteristics
- high-resistance, insulating, qualifier
- Material
- spruce
- Finish
- smooth
- Appearance
- wood look
- Color
- beige
- Market
- commercial
- Other characteristics
- easy to install, custom
- Ecological characteristics
- sustainable
- Thickness
Max.: 12 mm
(0.472 in)Min.: 12 mm
(0.472 in)- Width
Max.: 153 cm
(60 in)Min.: 122 cm
(48 in)- Length
Max.: 366 cm
(144.09 in)Min.: 244 cm
(96.06 in)
Description
Product overview
WISA®-LNG Spruce is spruce plywood intended for use as a structural material in insulation elements for the transport and storage of liquified natural gas (LNG).
End uses
Properties
Product information
Available thicknesses: 12 mm
Standard size range: 1220/1250 x 2440/2500/3000/3050/3660 mm; 1500/1525 x 2500/3000/3050/3660 mm
DoP document number: UPM014CPR
Technical notes
All products are GTT approved and technical performance fulfill GTT requirements.
Characteristics / technical specifications
WISA®-LNG Spruce is spruce plywood intended for use as a structural material in insulation elements for the transport and storage of liquified natural gas (LNG).
End uses
- LNG
Properties
- Designed for LNG applications
- Exterior-glued panel
- QR-code on pallet for identification
- Wide size range
- Sustainable
- Easy to install
- Cut-to-size available
- High performance structural panel
Product information
Available thicknesses: 12 mm
Standard size range: 1220/1250 x 2440/2500/3000/3050/3660 mm; 1500/1525 x 2500/3000/3050/3660 mm
DoP document number: UPM014CPR
Technical notes
All products are GTT approved and technical performance fulfill GTT requirements.
Characteristics / technical specifications
- Material: spruce plywood
- Model: WISA®-LNG Spruce
- Available thickness: 12 mm
- Standard size range: 1220/1250 x 2440/2500/3000/3050/3660 mm; 1500/1525 x 2500/3000/3050/3660 mm
- DoP document number: UPM014CPR
- Designed and certified for LNG applications (GTT approved)
- Exterior-glued panel
- QR-code on pallet for identification
- Cut-to-size service available
- High performance structural panel
