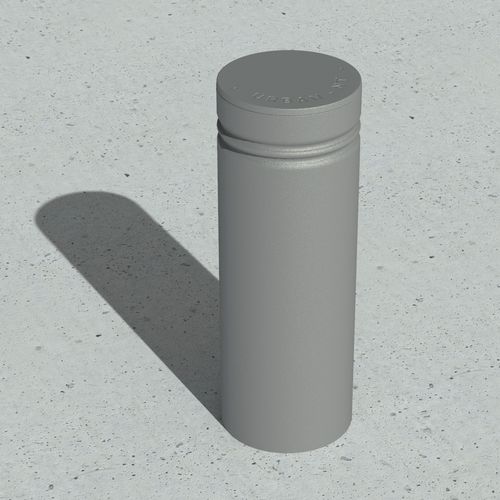

Dimension: Ø250mm - Weight: 110kg (lifting ears inside)
Overall height: 1200mm - height above ground: 700mm (500mm seal),
This bollard is made entirely of cast iron.
Withstands the impact of a 7.5T truck, Impact speed: 48km / h.
Complying with the standard: IWA 14-1: 2013 (crash-test - carried out by Transpolis)
See crash test video on our website
Cast iron terminal head fixed by 2 stainless steel screws with tamper-proof countersunk head supplied. Reversible bollard (With double grooves or class 2 reflective tape).
Fixed to be sealed in solid concrete dosed at 350Kg / m3 according to calculation note.
Once sealed in its concrete block, the bollard does not need any concrete filling, it is operational immediately after respecting the drying time of the concrete block.
