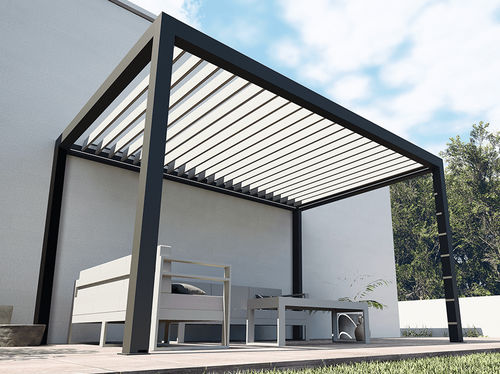

Self-supporting pergola S3

extruded aluminumwith mobile slatscustom

SELF-SUPPORTING BIOCLIMATIC ALUMINUM S3 PERGOLA ELECTRICALLY ADJUSTABLE PERPENDICULAR SLATS MADE TO MEASURE Max. projection: 4000mm Max. 4-post width: 6029mm Total width unlimited in several modules - Extruded aluminum structure - Unlimited choice of universal RAL structure colors - Extrusion thickness: 2 to 3 mm (depending on profile) - 190x28 mm double-wall extruded aluminum slats with 2 reinforced central partitions - Slat rotation 0° to 105 - Load-bearing capacity 50kg/m² - i.e. 800kg/16m². - Blades + Structure with integrated seals - Feet 120 x 120 mm, base height 2500 mm (can only be cut with visible plate) - Posts up to 3000 mm possible - Blade mounting by clip system - Concealed jack motor with multi-channel remote control - Floor mounting bracket - Stainless steel screws - 0° tilt - Water drainage through support beam - Approximate weight for a 4.5 x 6 m pergola +/- 650 kg - Wind rating: Class 6 UNE EN 16561 - European manufacturing - 10-year warranty - Free delivery in mainland France - Indicative delivery time 8/10 weeks
